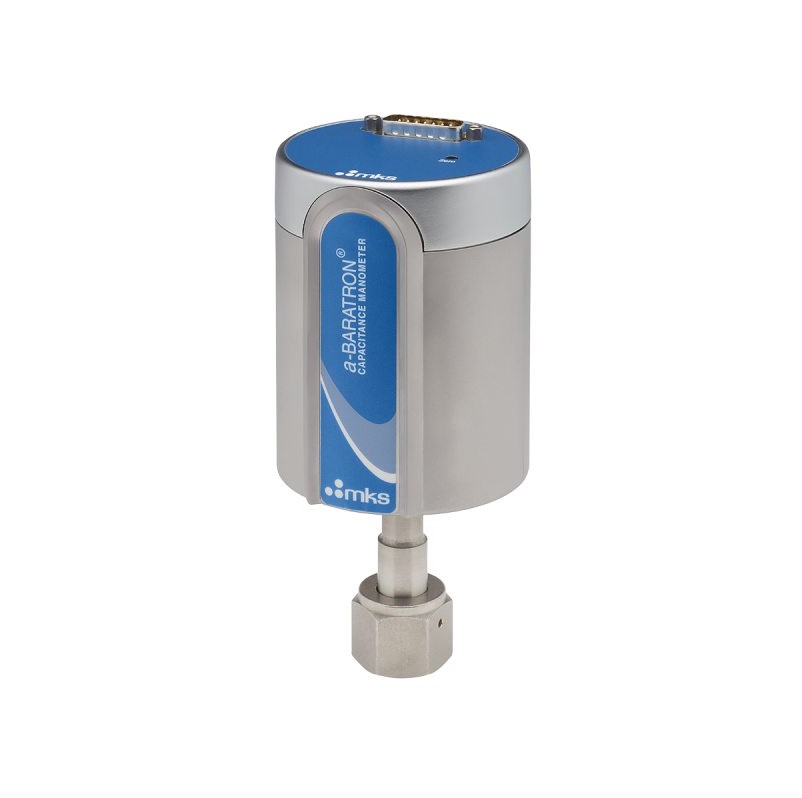

MKS AA02A Heated Absolute Baratro n® Capacitance Mano (45°C; 1000 Torr)

Sensor Type: Standard with Standard Tube Length

Measurement Type: Absolute

Full Scale Range: 1000 Torr

Sensor Temperature: 45°C

Fitting Type: 8 VCR female

Analog Output: 0 - 10 VDC

Electrical Connector: 15-pin D-sub male with screw locks

Accuracy: 0.10% of Reading

Resolution: 0.002% Full Scale

Time Constant: <20 ms for = 1 Torr, <40 ms for <1 Torr

Zero Temperature Coefficient: 0.002% FS/°C for 1 - 1000 Torr, 0.005% FS/°C for <1 Torr

Span Temperature Coefficient: 0.02% of Reading/°C

Operating Temperature Range: 15 - 40°C

Overpressure Limit: 45 psia

Exposed Materials: Inconel and Incoloy nickel alloys (some optional fittings are made from 300 series stainless steel)

Power Requirements: ±15 VDC

Calibration Orientation: Standard

Compliance: CE

For specific range please check the attachment below!
