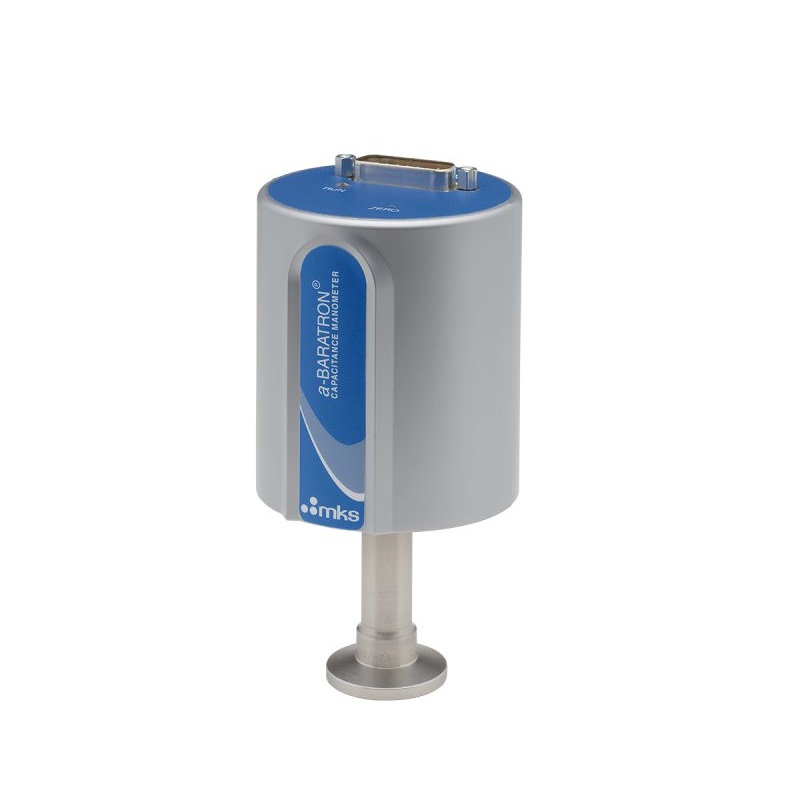

MKS AA01A Unheated Absolute Baratron® Capacitance Manometer (1000 Torr)

Measurement Type: Absolute

Full Scale Range: 1000 Torr

Sensor Temperature: Ambient

Fitting Type: NW16 ISO-KF

Analog Output: 0 - 10 VDC

Electrical Connector: 15-pin D-sub male with screw locks

Accuracy: 0.25% of Reading

Resolution: 0.002% of Full Scale

Zero Temperature Coefficient: 0.005% of Full Scale/°C

Span Temperature Coefficient: 0.04% of Reading/°C

Operating Temperature Range: 0 - 50°C

Overpressure Limit: 45 psia (310 kPa)

Exposed Materials: Inconel and Incoloy nickel alloys

Power Requirements: 15 - 30 VDC @ 35 mA

Compliance: CE

For specific range please check the attachment below!
