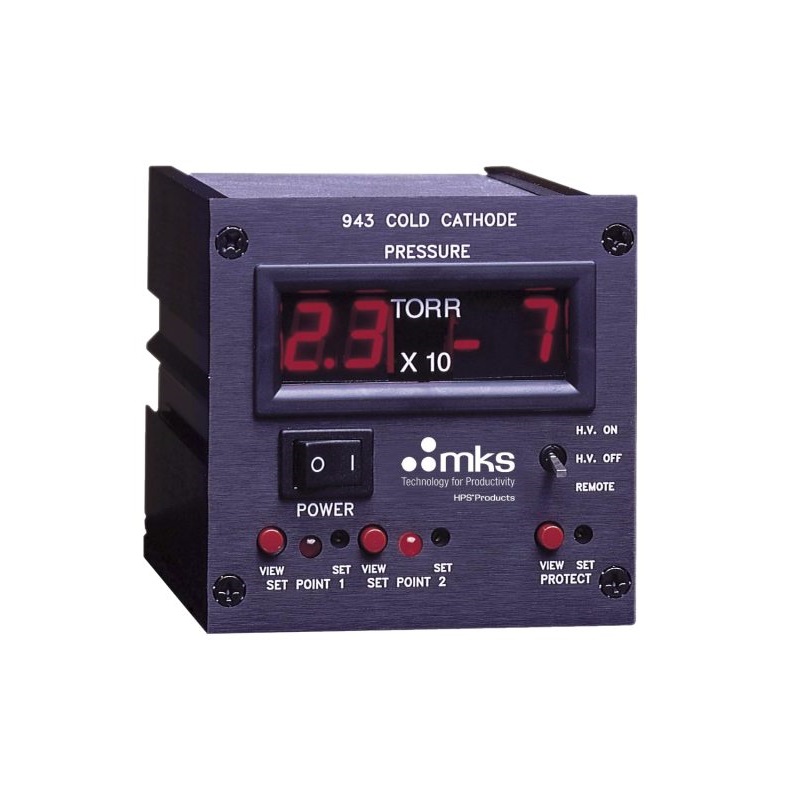

MKS 943 Vacuum Gauge Controller (10^-10-10^-2Torr; 220-240VAC)

Measurement Range: 1.0 x 10^-10 - 1.0 x 10^-2 Torr

Set Point Range: 2.0 x 10^-9 - 9.0 – 10^-3 Torr

Resolution: 1% of indicated decade

Operating Temperature: 5 - 40°C (41 - 104°F)

Storage Temperature: -10 - 55°C (14 - 104°F)

Relative Humidity: 80% maximum for temperatures less than 31°C, decreasing linearly to 50% maximum at 40°C

Set Point Response: 50 msec for pressures >10^-8 Torr

Relays: 2 independently set, SPDT contacts

Relay Contact Rating: 1 Amp @ 30 VAC or 24 VDC, resistive load

Power Requirements: 220 - 240 Volts, 50 Hz

Weight: 2.5 lbs. (1.1 kg)

Units: Torr

Display: Red LED, 7 segments digits 14 mm in height, ±60° viewing angle, 2 digits (1 leading) with 1.5 digit signed exponent, update rate: 250 msec

Output Voltage: Analog: 0 - 9 VDC, Logarithmic Analog: 1 - 9 VDC, 1 V per decade

Compliance: CE
