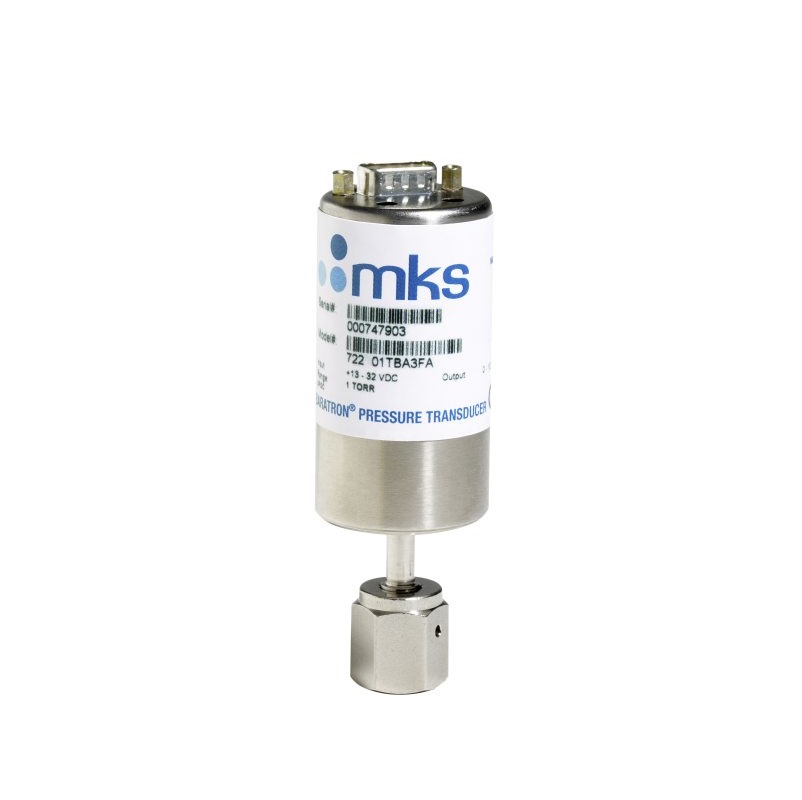

MKS 722C General Purpose Absolute Baratron® Capacitance Manometer (1 Torr; 0-10 VDC; DB9)

Measurement Type: Absolute

Full Scale Range: 1 Torr

Fitting Type: 0.5 in. OD tube

Analog Output: 0-10 VDC

Electrical Connector: 9-pin D-sub

Accuracy: 0.5% of Reading

Response Time: <20 msec

Zero Temperature Coefficient: 0.008% of F.S./°C (10 Torr through 25,000 Torr), 0.020% of F.S. (1 and 2 Torr)

Span Temperature Coefficient: 0.04% of Rdg./°C

Operating Temperature Range: 15-40°C

Overpressure Limit: 45 psia or 2 x F.S., whichever is greater

Burst Pressure: 10 x F.S. or 100 psi, whichever is greater

Exposed Materials: Inconel®

Power Requirements: 13-32 VDC

For specific range please check the attachment below!
