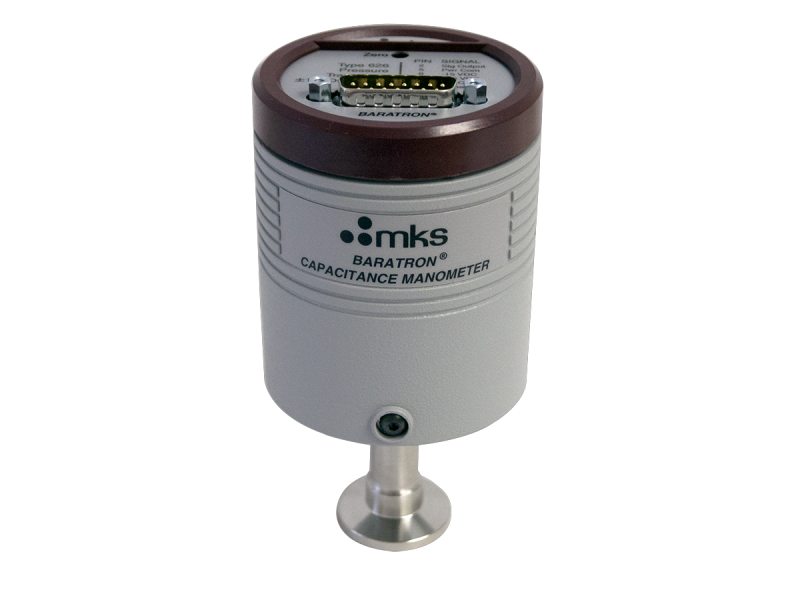

MKS 626D Unheated Absolute Baratron® Capacitance Manometer (1 Torr; 8 VCR-F)

Measurement Type: Absolute

Full Scale Range: 1 Torr

Sensor Temperature: Ambient

Fitting Type: 8 VCR female

Analog Output: 0-10 VDC

Accuracy: 0.25% of Reading

Electrical Connector: 15-pin D-sub

Zero Temperature Coefficient: 0.015% Full Scale/°C

Span Temperature Coefficient: 0.04% of Reading/°C

Operating Temperature Range: 0-50°C

Resolution: 0.001% of Full Scale

Volume: 6.3 cc

Overpressure Limit: 45 psia (310 kPa)

Exposed Materials: Inconel® and Incoloy® nickel alloys

Power Requirements: ±15VDC (±5%) @ 35 mA

Compliance: CE

For specific range please check the attachment below!
