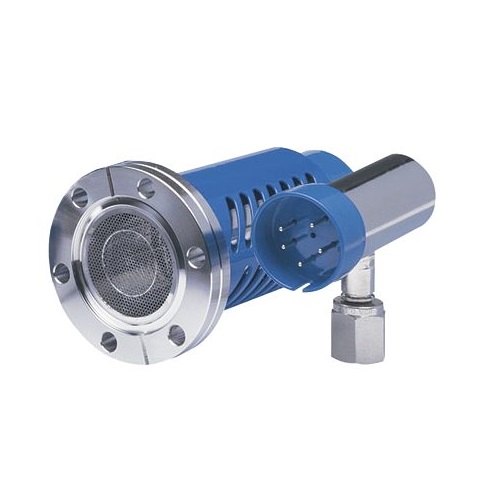

MKS 370 Stabil-Ion® Hot-cathode Ionization Vacuum Gauges (2x10-10 Torr; 2.75 in. CF)

Sensor Type: Bayard-Alpert Hot Cathode

Measurement Range: 2.0 x 10-10 to 999 Torr

Fitting Type: CF Flange

Flange Size: 2.75 in.

Case Materials: Aluminum extrusion, steel, plastic

Accuracy: 1 x 10-8 - 1 x 10-4 Torr, ±4% of reading (for N2)

Repeatability: 1 x 10-8 Torr to 1 x 10-4, Torr ±3% of reading

Operating Temperature: 0 - 40°C

Storage Temperature: -40 - 70°C

Power Requirements: 90 - 130 VAC, 180 - 250 VAC, 50 - 60 Hz, 220 W max

Emission Current: 0.1 mA and 4.0 mA

Analog Output: 1 volt/decade, logarithmic, 0 - 10 Vdc

Compliance: CE
