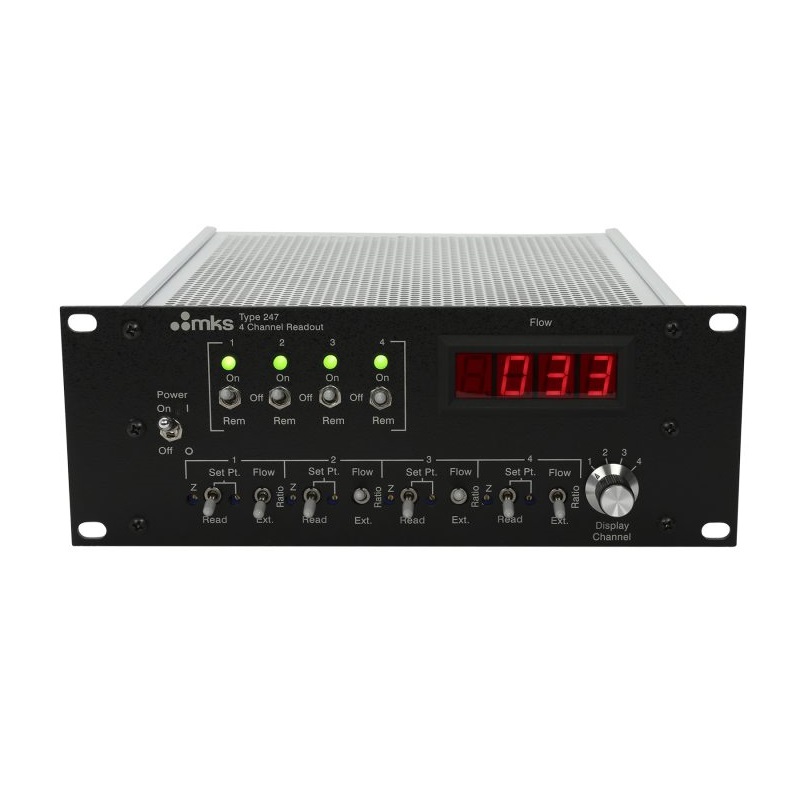

MKS 247D Flow Controller Power Supply and Readout (4 channel; ±15VDC)

Display: 3.5-digit 0.56 inch red LED, display is 1 of 4 sequentially selectable

Channels: 4

Input Signal: 4 x 0 - 5 VDC

Gas Correction Factor: 0.1 - 4.0

External Set Point: 0 - 5 VDC

External ON/OFF: TTL-compatible

Unscaled Signal Output: 4 x 0 - 5 VDC = 0 - 100% of Full Scale

Scaled Signal Output: 0 - 2 VDC (max.)

Power Supply Output: ±15 VDC at 1.0 Amp, max. ripple < 10 mV

Power Requirements: VAC ±15%, 50/60 Hz

For Use With: MKS 179, 180, 579, 1179, 1479, 1480, 1559, 1579, 2179, M10M, M100

Signal Output Minimum Load Impedance: 10 kOhm/channel
