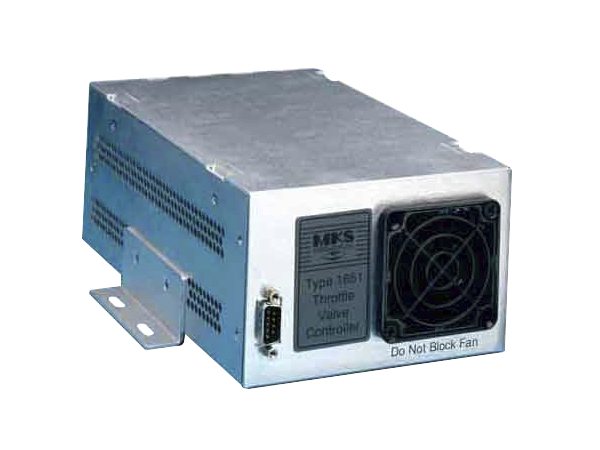

MKS 1651C2S Displayless Digital Pressure Controller (±15VDC; ±5%)

Type: 1651C Displayless Digital Pressure Controller

For Use With: 653, 253 Valves

Valve Driver: Stepper Motor

Power Input: ±15 VDC ±5%

Minimum Input Current: 653 Valve: 1 Amp plus transducer current

253 Valve: 0.5 Amp plus transducer current

Power Output: Available to external transducers: ±15 Volts @ 3 Amps max. (90 Watts) from an external power supply with a capacity of ±15 Volts @ 5 Amps (150 Watts)

Pressure Control Signal: 0-5 VDC, 0-10 VDC, 0-1 VDC, user selectable

Output/Input Signal: 0-5 or 0-10 VDC for 0-100% valve position and 0-10 VDC for 0-100% Full Scale pressure

Set Points: 5

External Analog: 1; pressure or position, 0-5 or 0-10 VDC

Relay Output: 2, process limits: 24 Volts VDC @ 1 Amp resistive

Repeatability: ±0.1% of Full Scale

Operating Temperature: 15 - 50°C (60 - 122°F)

Display: none

User Interface: Analog, TTL (16 inputs, 6 outputs) and RS-232

Maximum Input Current: 7 Amps

Connectors: Power: 9-pin type D male

Valve: 9-pin type D female

I/O: 37-pin type D female

Transducer: 15-pin type D female

RS232: 9-pin type D male

Dimensions: 3.5 x 6.7 x 9.15 in. (HxWxD)
