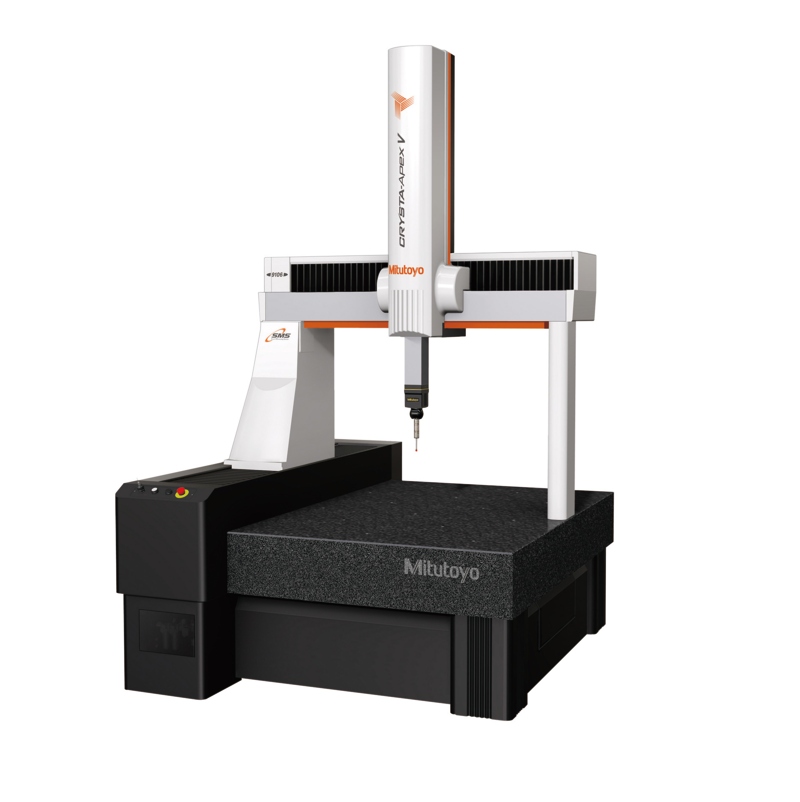

MITUTOYO V9106 Crysta-Apex CNC CMM (900x1000x600mm; 519mm/s)

Specifications

Range: X-900mm; Y-1000mm; Z-600mm

Accuracy: 1.7+3L/1000 (at 18-22°C)

1.7+4L/1000 (at 16-26°C)

Comments: Standard stand

Width: 1670mm

Depth: 2000mm

Mass: 2231kg

Max. drive speed: 519mm/s (3-axis)

Height: 2730mm

E0,MPE:

- With SP25M: (1.7+4L/1000)µm;

- With TP200: (1.9+4L/1000)µm;

- With TP20: (2.2+4L/1000)µm; L = measured length [mm]

3D Acceleration: 2309mm/s2

Air supply: Pressure = 0.4MPa

Power supply report: UN 38.3 test summary report

Included accessories:

PH10MQP R2 SYSTEM(S) OVERSEA

PH10MQ PLUS W/SP25M PROBE (ROHS)

STYLI KIT M3 STARTER

MCOSMOS-3 CNC V4.3

JSBOX-M2 CONFIG (JR24)

AC CABLE SET-BS (3M)

MASTER BALL ST-505950/502960

COMPUTER FOR QV

CKD AIR DRYER GX8203D-S13

APC SMART-UPS SUA2200I

BMT-05 W605XD525XH1200

EPSON ECOTANK L3110

INSTALLATION CNC CMM 9106

CALIBRATION CNC CMM 9106

TRAINING MCOSMOS 3
