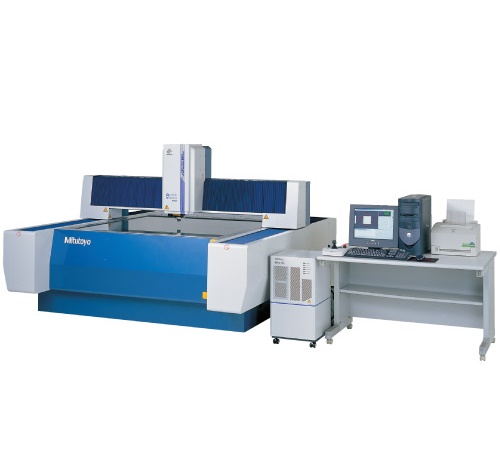

MITUTOYO QV ACCEL 1010PRO CNC Vision Measuring System (1000mm 1000mm 150mm)
ManufacturerMITUTOYO(View more products from this manufacturer)
ModelQV ACCEL 1010PRO
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range X-Axis: 0-40in 0-1000mm
Range Y-Axis: 0-40in 0-1000mm
Range Z-Axis: 0-6in 0-150mm
Resolution: 0.1µm
High-sensitivity CCD camera: BW
Accuracy (20°C 1.0°C): E1xy-(1.5+3L/1000)µm
E1z-(3.0+4L1000)µm
E2xy-(2.5+4L/1000)µm
Max.Drive Speed: X/Y: 400/150mm/s
Illumination: Surface-LED,white; Contour-LED,White; PRL-LED,white (4 divisions)
Magnification change system: Programmable power (1x ,2x ,6x) turret
Stage glass size: 46.7x46.7in 1186x1186mm
Dimension: 75.3x82x63in 1912x2086x1603mm
Mass: 6490lbs 2950kg
