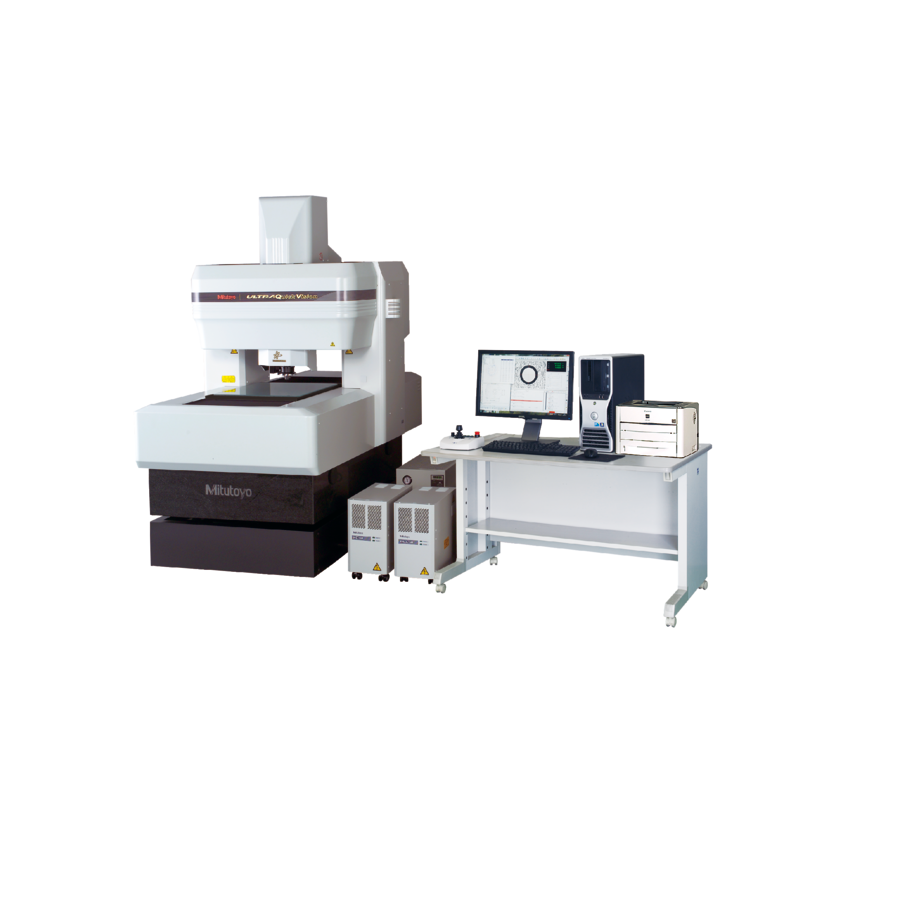

MITUTOYO QV-U404P1N-D Vision Measuring System (400 x 400 x 200 mm)

Factory option: - Tracking Auto Focus (TAF)

Measuring range (X×Y×Z): 400 x 400 x 200 mm

Vision measuring accuracy:

+ E1X,E1Y = (0.25+L/1000) µm

+ E1Z (50 mm stroke) = (1.0+2L/1000) µm

+ E1Z (Full stroke) = (1.5+2L/1000) µm

+ E2XY = (0.5+2L/1000)

Resolution of scale: 0.01 µm

Illumination unit: Contour illumination: Halogen; Vertical surface illumination: Halogen; PRL: Halogen

Observation unit: Programmable power turret 1X-2X-6X
