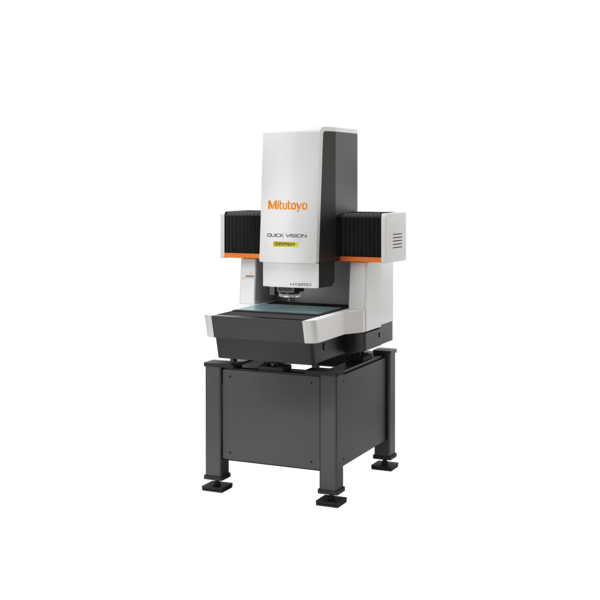

MITUTOYO QV-H404P1L-E Vision Measuring System (400x400x250 mm; White LED)

Measuring range (X×Y×Z): 400 x 400 x 250 mm

Max. stage loading: 30 kg

Main unit mass (Including the special sub-base): 640 kg

Vision measuring accuracy:

+ EUX,MPE/EUY,MPE = (0.8+2L/1000) µm

+ EUZ,MPE = (1.5+2L/1000) µm

+ EUXY,MPE = (1.4+3L/1000) µm

TP measuring accuracy: EX,MPE/EY,MPE/EZ,MPE= (1.7+3L/1000) µm

Resolution of scale: 0.02 µm

Illumination unit: Contour illumination: White LED Vertical surface illumination: White LED PRL: White LED

Observation unit: Programmable power turret 1X-2X-6X

Thermal compensation function: Automatic
