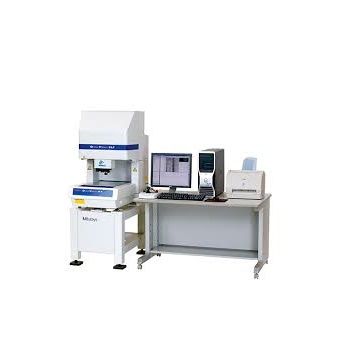

MITUTOYO QV-E202 Vision Measuring System (250, 200, 200mm)

Measuring range (X × Y × Z): 9.84"x 7.87"x 7.87" (250 × 200 × 200mm)

Resolution / scale unit: 0.1μm / reflective-type linear encoder

CCD camera: B & W

Illumination unit:

Vertical reflected stage light: White LED

Coaxial: White LED

Programmable Ring light: White LED

Measuring accuracy:

E1 X / Y axes: (2+3L / 1000) μm

E1 Z axis: (3+5L / 1000) μm

LAF repeatability: –

Stage glass size: 12.28" x 10.59" (312 x 269mm)

Maximum stage loading: 33lbs. (15kg)

Dimensions of main unit: 23.07" x 33.35" x 60.16" (586 x 847 x 1528mm)

Mass of main unit (including mounting stand): 595lbs. (270kg)

Optional accessories:

Laser Auto Focus

Rotary Index
