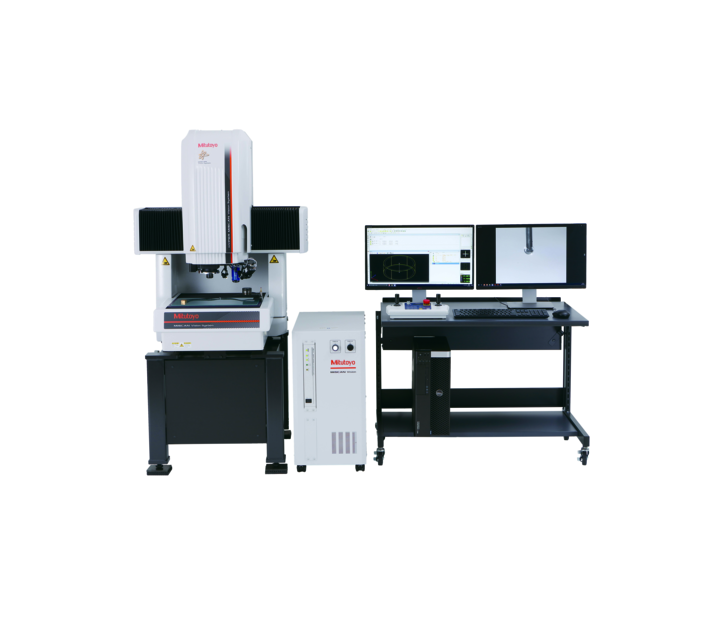

MITUTOYO MVS-H302P1L-D Vision Measuring System (300 x 200 x 200 mm)

Measuring range using vision sensor: 300 x 200 x 200 mm

Measuring range using scanning probe: 175 x 200 x 200 mm

Measurement accuracy with vision sensor [µm]:

E1x, E1y= (0.8+0.2L/100)

E1z= (1.5+0.2L/100)

E2xy= (1.4+0.3L/100)

Measurement accuracy with scanning probe [µm]:

E0,MPE= (1.9+0.4L/100)

Datasheet
