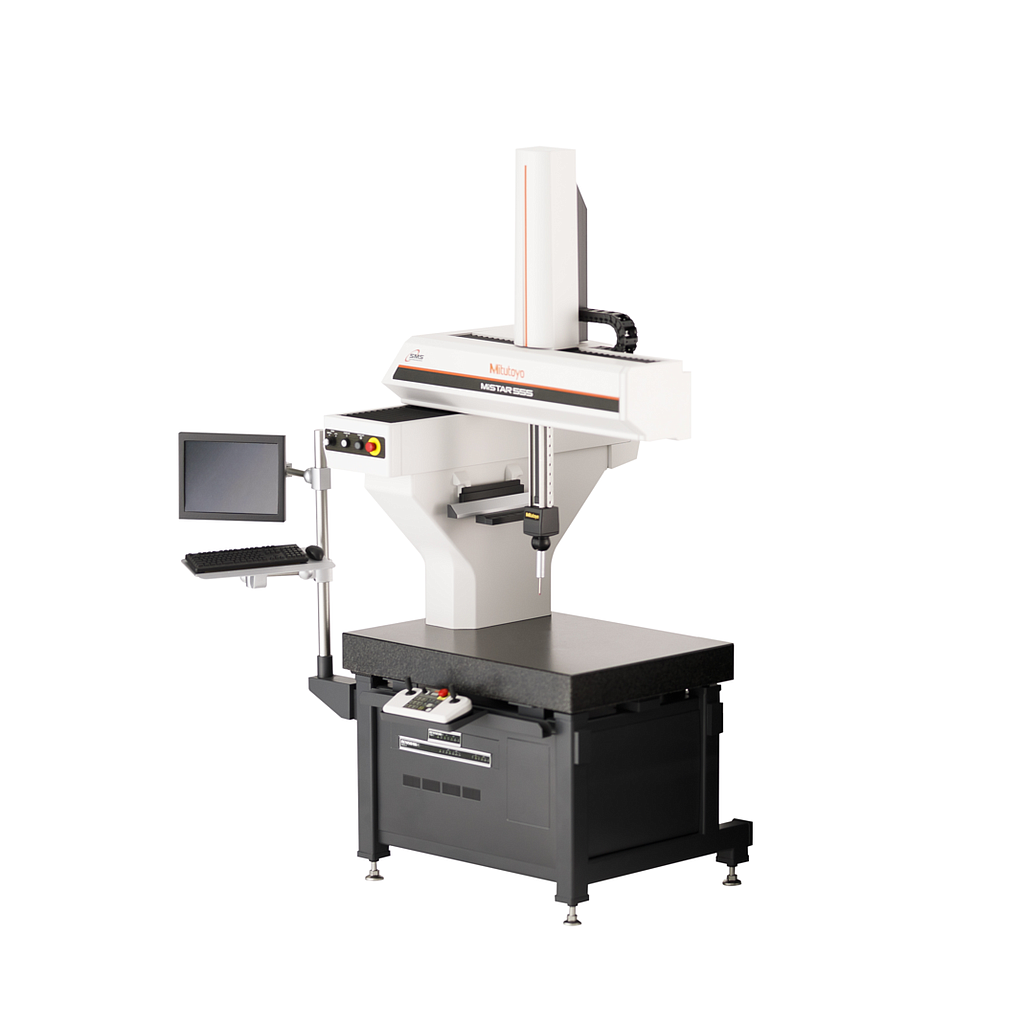

MITUTOYO MiSTAR 555 Coordinate Measuring Machine (X 570 mm, Y 500 mm, Z 500 mm)

Measuring range:

X 570 mm

Y 500 mm

Z 500 mm

Max. Permissible Length Measurement Error (ISO 10360-2: 2009): (2.2+3L/1000) µm*2 L: Measured length (unit: mm)

Drive speed: 5 - 350 mm/s (max. combined speed 606 mm/s) in CNC MODE

Drive acceleration: 1556 mm/s2 (max. combined acceleration 2695 mm/s2)

Measuring table capacity: Maximum workpiece height 660 mm

Maximum loading: 120 kg

Accuracy guaranteed temperature: 10 ºC - 40 ºC

Mass (including the control device and installation platform): 655 kg
