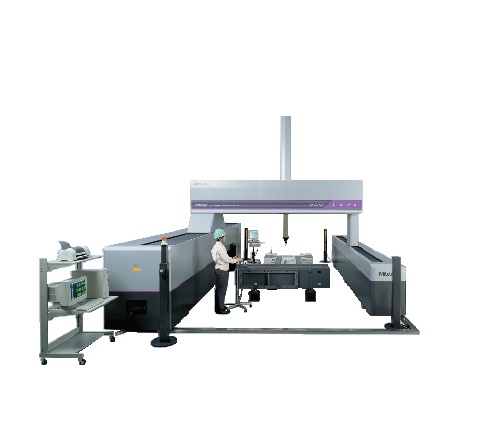

MITUTOYO FALCIO Apex G 204015 CNC Coordinate Measuring Machine (2005mm 4005mm 1505mm)
ManufacturerMITUTOYO(View more products from this manufacturer)
ModelFALCIO Apex G 204015
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring range:
X-Axis: 0-78.94in 0-2005mm
Y-Axis: 0-157.68in 0-4005mm
Z-Axis: 0-59.25in 0-1505mm
Resolution: .000004in 0.0001mm
Accuracy: E-(4.8+5L/1000)µm; R-5µm
Mass (main unit): 30864lbs 14000kg
Length standard: High accuracy linear encoder
Guide system: Air bearing
Max. drive speed: 430mm/sec
Max. acceleration: 0.17G
Air pressure: 0.4MPa
Air consumption: 120L/min
