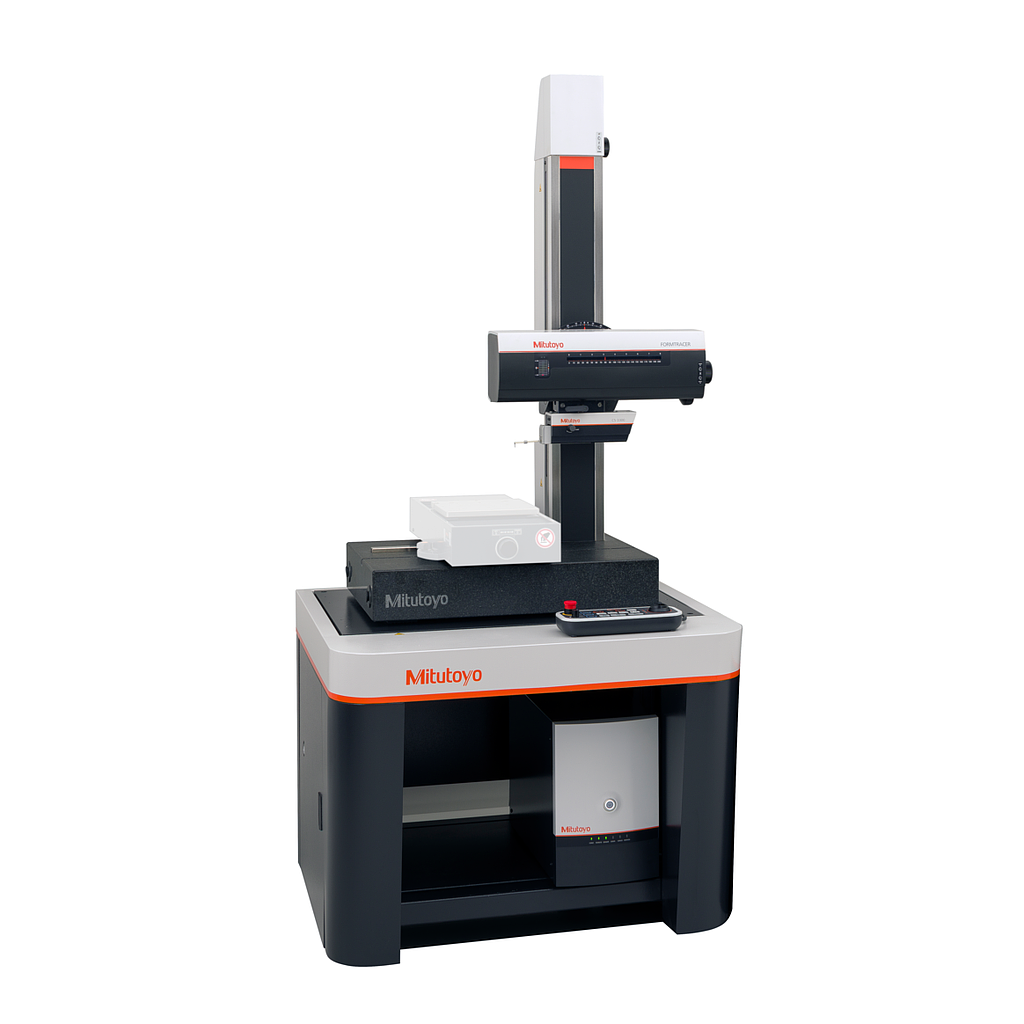

MITUTOYO CS-3300L8 Surface Texture Measuring Instrument (X=200mm; Z2=700mm)

- Measuring range:

X axis: 200 mm

Z1 axis: 5 mm (±2.5 mm in horizontal situation)

- Straightness (when the X axis is horizontal): 0.6 µm/200 mm

- Accuracy (20 °C):

X axis: (0.8+0.015L) µm L = Measurement Length (mm)

Z1 axis (detector unit): ±(1.2+|2H|/100) µm H = Measurement height from the horizontal position (mm)

- Detector (Z1 axis)

Detection method: Differential inductance

Measuring force: 0.75 mN

Stylus tip:

Standard: Tip radius 2 µm, Tip angle 60°, Diamond (surface roughness/contour)

Cone: Tip radius 25 µm, Tip angle 30°, Sapphire (contour)

Stylus up/down: Available (stoppable at mid-stroke if required)

- X-axis inclination angle: ±45°

- Z2-axis (column) travel range: 700mm

- Base size (W×D): 1000x450

- Base material: Granite
