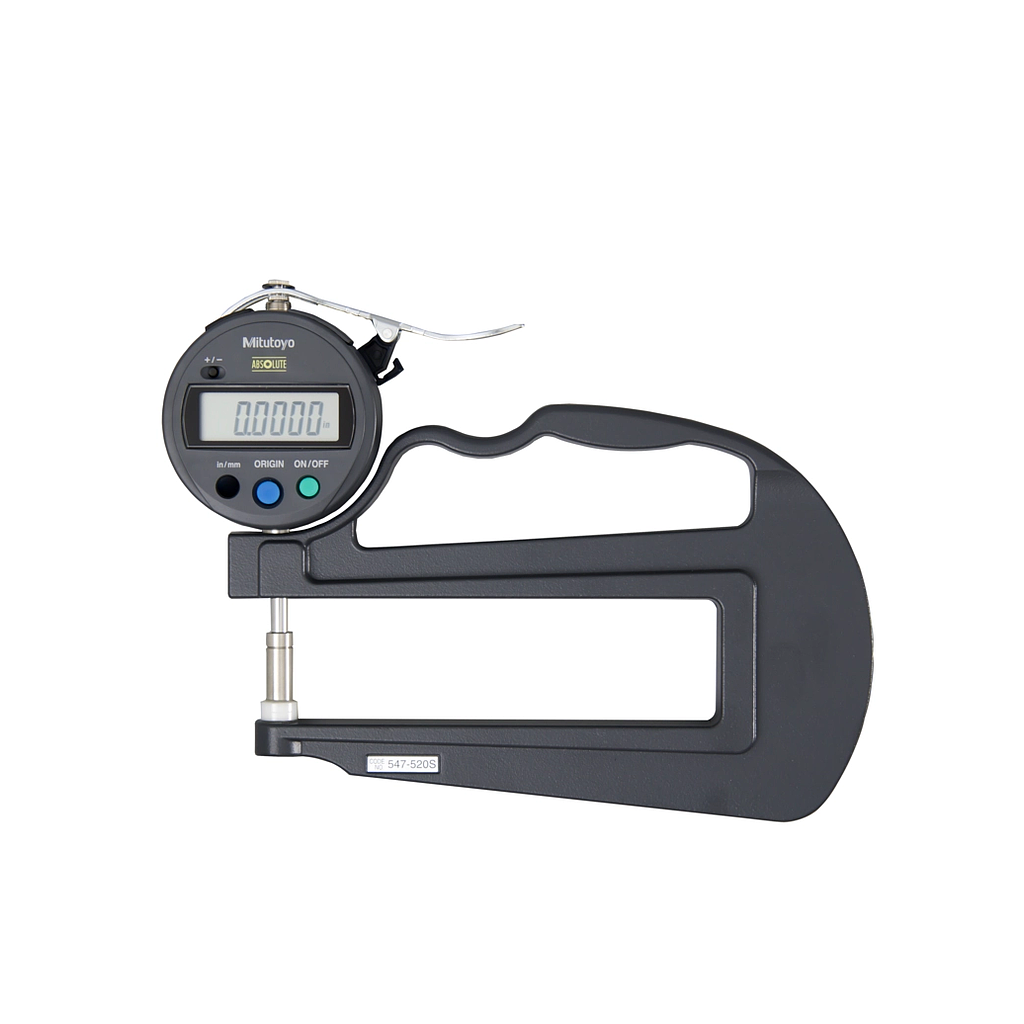

MITUTOYO 547-520S Digital Thickness Gauge (0~12 mm, 0.01 mm)
ManufacturerMITUTOYO(View more products from this manufacturer)
Model547-520S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Digital/Analog: Digital
Inch-Metric: Inch/Metric
Range: 0~0.47 " / 0~12 mm
Type: With digital indicator with 3/8" stem refer to ANSI/AGD
Digital step: 0.0005"/0.01 mm
Parallelism: 0.0005"
Indicator No.: ID-S No. 543-783BS (ANSI/AGD type)
Max. measuring depth: 120 mm
Max. response speed: Unlimited
Alarm: Low voltage, counting value composition error, overflow error
Contact point: Thread # 4-48UNF
Power supply: 1 battery SR-44
Battery life: Approx. 7000 hours
ON/OFF: Yes
Inch/Metric switchable: Yes
Mass: 380 g
