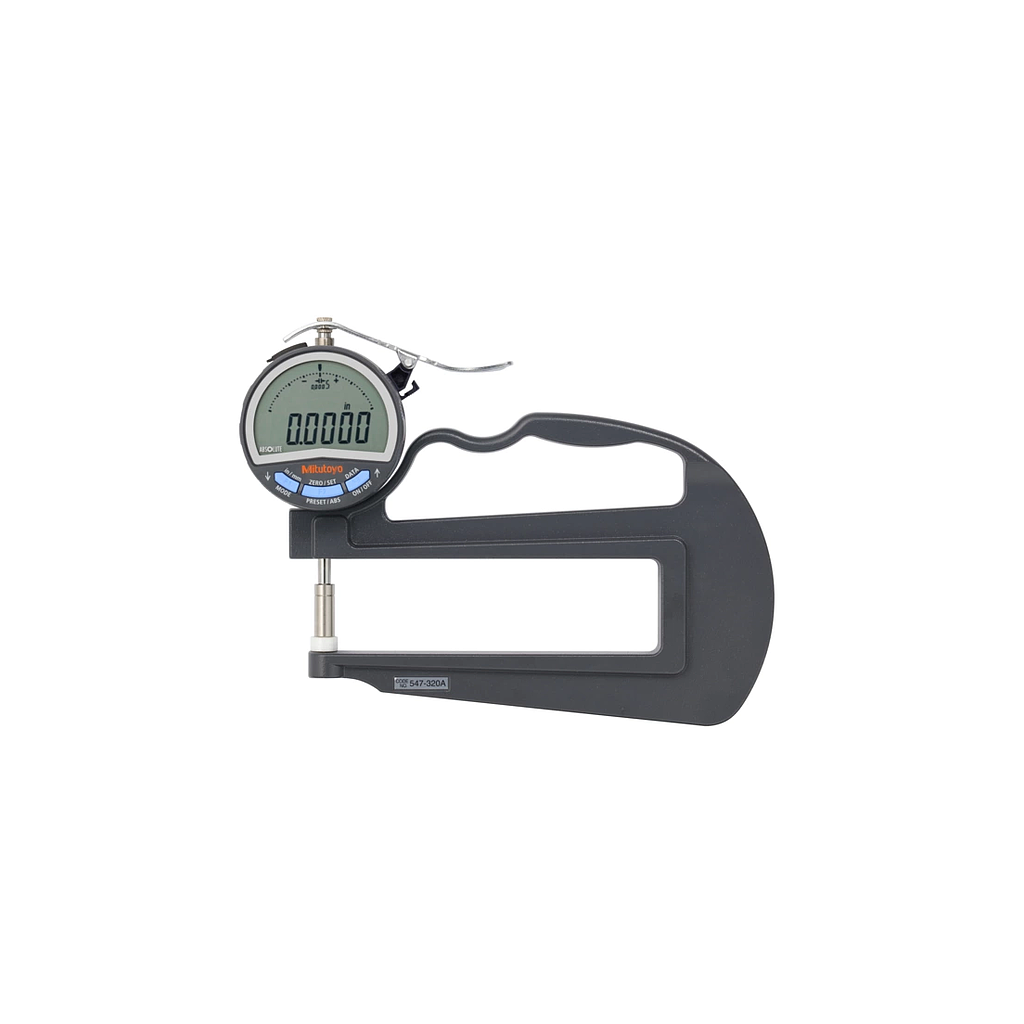

MITUTOYO 547-320A Digital Thickness Gauge (0-10mm/0.01)

Range: 0 - 0.4 "

Type:Ceramic disc contact points and large jaw capacity

Digital step: 0.0005"/0.01 mm

Accuracy: ±20 µm

Parallelism:0.0005"/ 0.01 mm

Max. measuring depth:120 mm

Measuring force:≤ 1.5 N

Display:LCD, character height 11 mm

Alarm:Low voltage, setting errors, sensor error, display overflow a.s.o.

Power supply: 1 battery CR2032 (3V)

Battery life:Continuous use: approx. 2700h

DATA/HOLD:Yes

Digimatic data output:Yes

ON/OFF:Yes

Function lock:Yes

GO/±NG judgement:Yes

ABS / INC (INC ZERO): Yes

Calculation function (with formula): Yes

Counting direction switchable: Yes

Digimatic S1 Bidirectional interface: Yes

Analog bar resolution selection:: Yes

Auto Power OFF setting: Yes

Analog bar resolution switchable: Yes

Inch/Metric switchable:Yes

Calibration warning function:Yes

Digital step switchable: No

Digital Scale:Electrostatic capacitance type absolute linear encoder

Mass: 385 g
