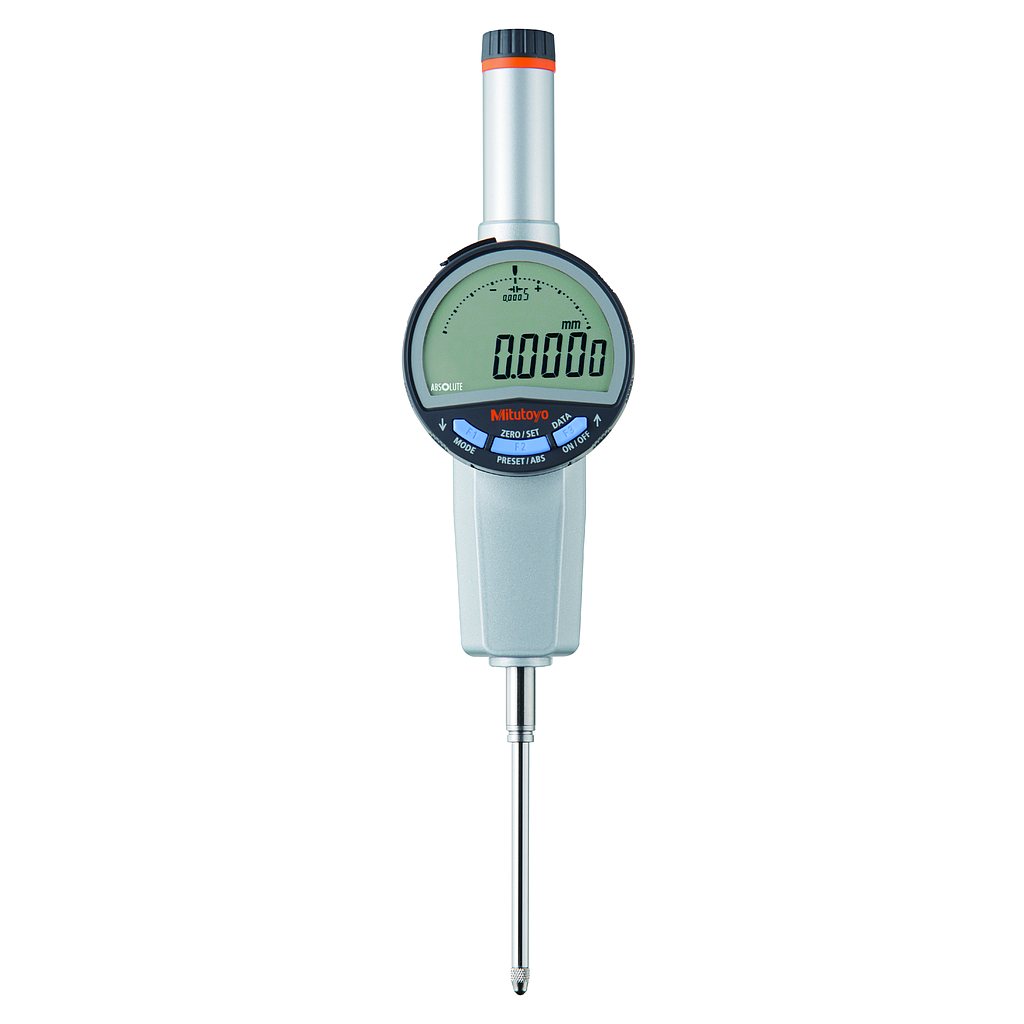

MITUTOYO 543-730B Digital Indicator ID-C

Digital/Analog: Digital

Inch-Metric: Metric

Range: 50.8 mm

Digital step:0.0005 mm/0.001 mm/0,01mm

Max. Permissible ErrorE MPE (Total Range):0.005 mm

H MPE (Hysteresis):0.002 mm

R MPE (Repeatability):0.002 mm

Protection:IP42

Type:EN ISO Standard

Scale:Electrostatic capacitance type absolute linear encoder

Display:LCD, character height 11 mm, 330° rotatable

Measurement frequency (MAX/MIN/RANGE):50 times/s

Alarm:Low voltage, setting errors, sensor error, display overflow a.s.o.

Stem Ø:8 mm

Contact point:Carbide ball, thread: M2.5x0.45

Power supply:1 battery CR2032

Battery life:Approx. 2700 hours (continuous use)

Delivered:Including CR2032 battery, battery lid opener, lifting handle, certificate of inspection
