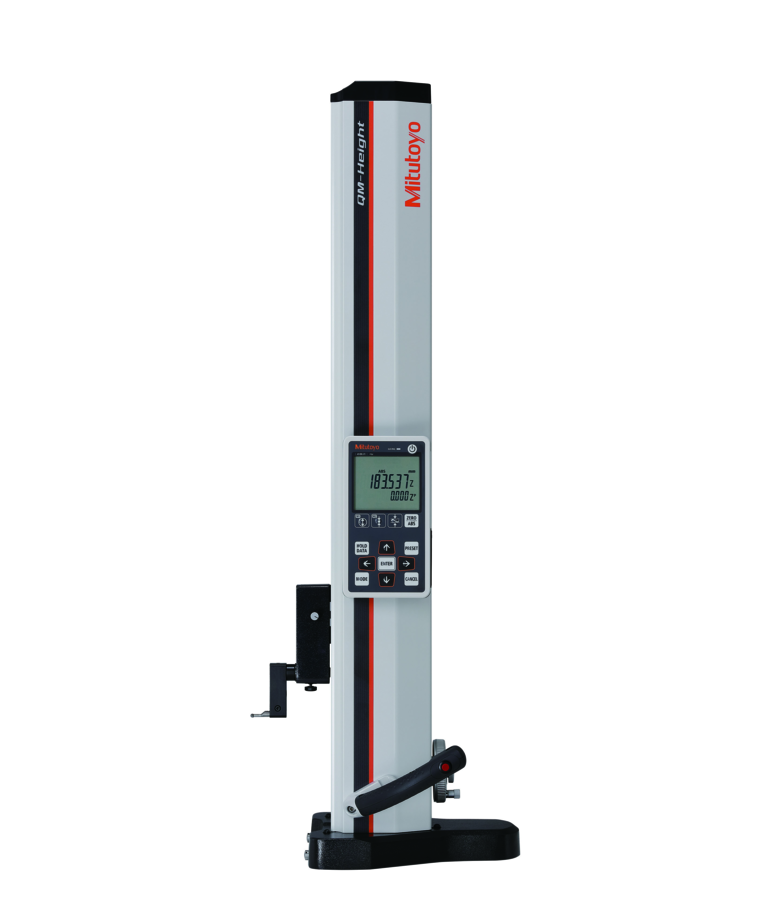

MITUTOYO 518-247 High-Precision Digital Height Gauge (0mm- 715mm)

Measuring range (stroke): 0mm- 715mm (600mm/24")

Resolution: 0.001mm/ 0.005mm/0.00005"/0.0001"/0.0002"

Repeatability: 2σ ≤ 1.8µm

Perpendicularity (20°C): 12µm

Measuring force: 1.5 ± 0.5 N

Air-float: Available

Driving method: Manual

Guiding method: Roller bearing

Detection method: Electromagnetic induction Absolute encoder

Power supply: Alkaline battery size AA LR6 (4pcs), rechargeable battery size AA Ni-MH (4pcs), AC-Adapter (optional)

Mass (kg): 29kg

Dimensions (WxDxH): 280x273x1016mm

Operating temperature range (recommended): 0°C to 40°C (10°C to 30°C)

Operating humidity range: 20 % to 80%RH (with no condensation)

Storage temperature range: -10°C to 50°C

Storage humidity range: 5% to 90% RH (with no condensation)
