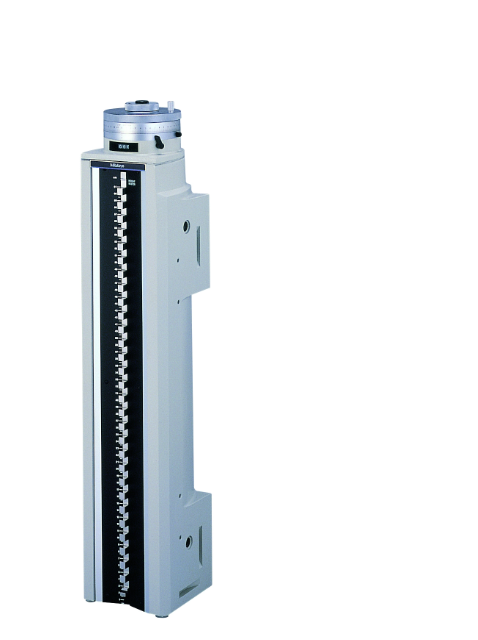

MITUTOYO 515-520 Height Master (5-610mm)

Range: 5 - 610 mm

Graduation: 0.001 mm

Block step: 10 mm straight

Feed error: ±1.2 µm

Inch-Metric: Metric

Retrace error: 1.2 µm

Micrometer adjustment: 20 mm

Micrometer feed: 0.5 mm

Block pitch accuracy:

Range ≤ 310 mm: ±1.5 μm

310 < range ≤ 610 mm: ±2.5 μm

610 < range ≤ 1010 mm: ±3.5 μm

Parallelism of blocks:

Range ≤ 610 mm: 1.5 μm

610 < range ≤ 1010 mm: 2 μm

Mass: 45 kg
