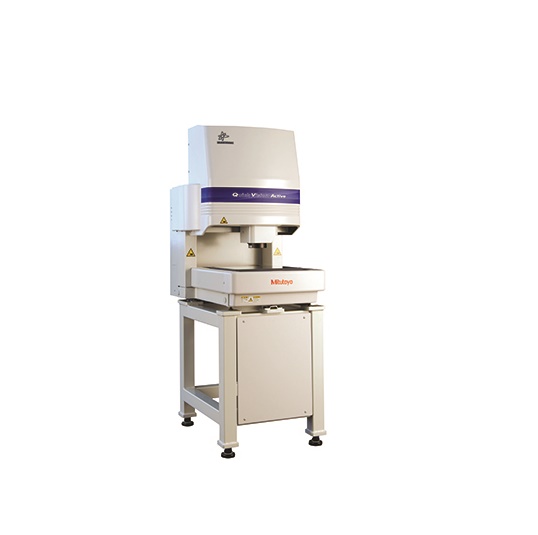

MITUTOYO QV-L404Z1L-D CNC Vision Measuring System (400mm, 400mm, 200mm)

Measuring Range X-Axis: 15.75in 400mm

Measuring Range Y-Axis: 15.75in 400mm

Measuring Range Z-Axis: 7.78in 200mm

Resolution 0.1 µm

Measuring accuracy: E1(X,Y) = (2+3L/1000)

E1(Z) = (3+5L/1000)

E2(X,Y) = (2.5+4L/1000)

Max stage loading: -

Mass: 44lbs 20kg

Illuminations: (White LED)

Contour / Coaxial / 4-quadrant ring light

Magnification change system: Zoom optical system with 8 positions

(Standard 1.5X magnification lens)

Sensor type: High-resolution CMOS color camera

Optional objective lenrs: 1X and 2X magnification

Factory option: Series 364 (TP) Touch-Probe option
