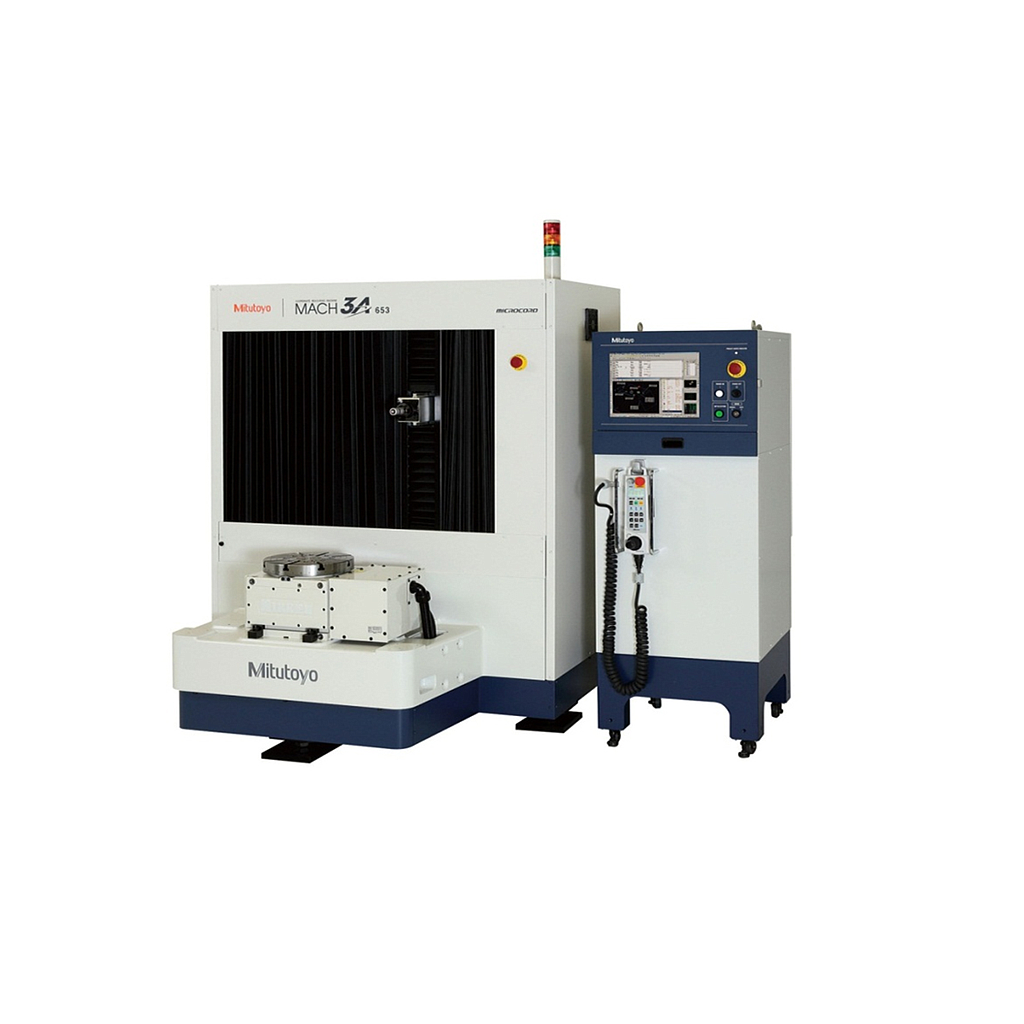

MITUTOYO MACH-3A 653 Coordinate Measuring Machine (X600mm, Y 500mm, Z 280mm)

Measuring range:

X-axis 600mm

Y-axis 500mm

Z-axis 280mm

Resolution: 0.0001mm (0.1μm)

Guide system: Linear guide on each axis

Operating speeds:

- CNC Mode Drive speed: each axis 8 to 700mm/s; all axes 1212mm/s

Measuring speed for TP7M: 1 to 30mm/s

Measuring speed for TP20: 1 to 20mm/s

- Joystick mode: 0 to 80mm/s (High Speed); 0 to 3mm/s (Low Speed); 0.05mm/s (Fine Speed)

Maximum drive acceleration: Each axis 6,860mm/s2 ; all axes 11,882mm/s2

Scale type: Linear encoder

Workpiece:

- Maximum height: 750mm

- Maximum mass: 200 kg (excluding optional accessories)

Mass of machine (including the mounting stand and controller): 1,500 kg (excluding optional accessories

Operating environment: 5 to 40°C

Probe used: SP25M (stylus: ø4x50mm), TP7M (stylus: ø4x20mm); TP20 (stylus:ø3x10mm)
