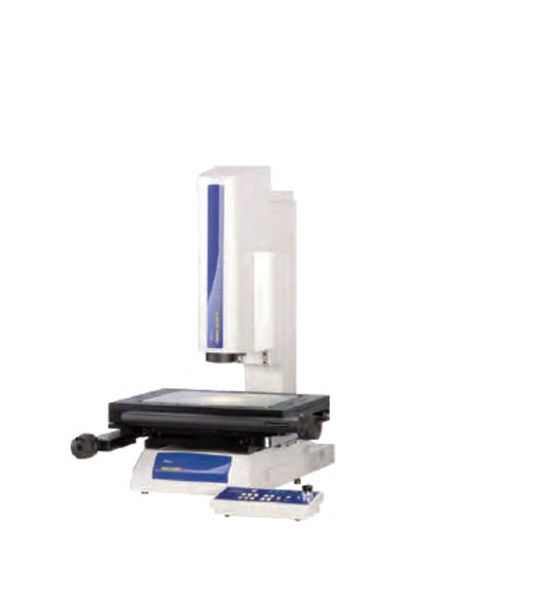

MITUTOYO QS250Z Vision Measuring System (200, 250, 100mm)

Drive method: X axis/Y axis/Z axis : CNC

Optical Magnification: Zoom: 0.75X-5.25X (in 8steps)

Measuring range (X×Y×Z): 8"× 10"× 4"(200×250×100mm)

Resolution/Length standard: 0.1μm/Linear encoder

Image detecting unit: 1/3" Color CMOS camera

Indication accuracy

X, Y (2.5+6L/1000)µm

Z (5.0+6L/1000)µm

Operating temperature range: 20±1°C

Drive speed: Max 80mm/s

Acceleration and deceleration: Max 250mm/s2

Stage glass size: 11"× 12"(269×311mm)

Maximum stage loading: 22 lbs (10kg)

Illumination:

Stage light: 12V/30W Halogen

Co-axial light: 12V/50W Halogen

Ring fiber light: 12V/100W Halogen

Dimensions (W×D×H)mm: 18"× 32"× 26"(465×815×663mm)

Mass: 169 lbs (76kg)

Power consumption: 500W at max
