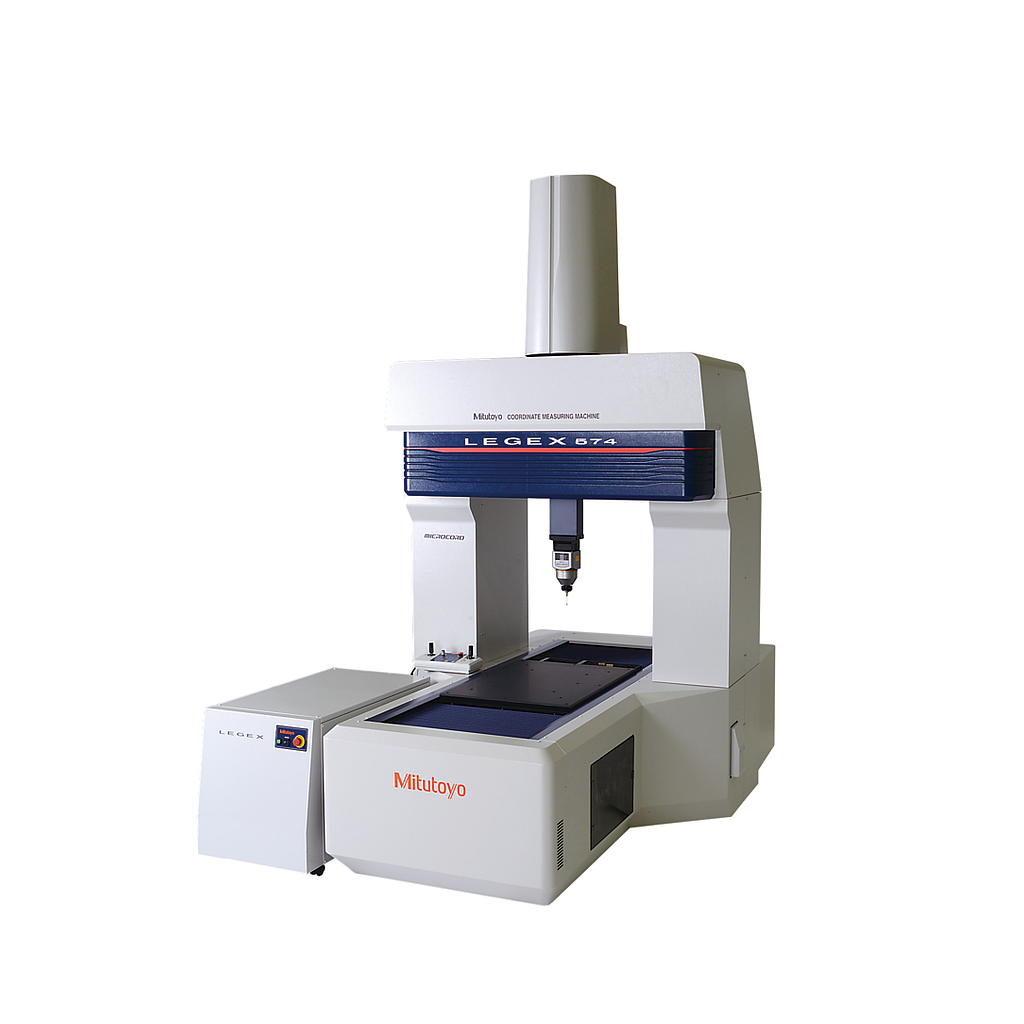

MITUTOYO LEGEX 574 Coordinate Measuring Machine (500mm, 700mm, 450mm)

Measuring range:

X-axis 500mm

Y-axis 700mm

Z-axis 450mm

Measurement method: Ultrahigh-precision linear encoder

Maximum measuring speed: 200mm/s

Maximum acceleration: 980mm/s2

Resolution: 0.00001mm

Guide method: Air bearing

Measuring table

- Material: Cast iron

- Size: 550×750mm

- Tapped insert: M8×1.25mm (for workpiece clamping)

Table loading

- Maximum workpiece height: 695mm

- Maximum Table loading: 250kg

Mass (main unit): 3500kg

Air supply

- Pressure: 0.5 MPa

- Consumption: 120L/min under normal conditions (air source: 160L/min or more)
