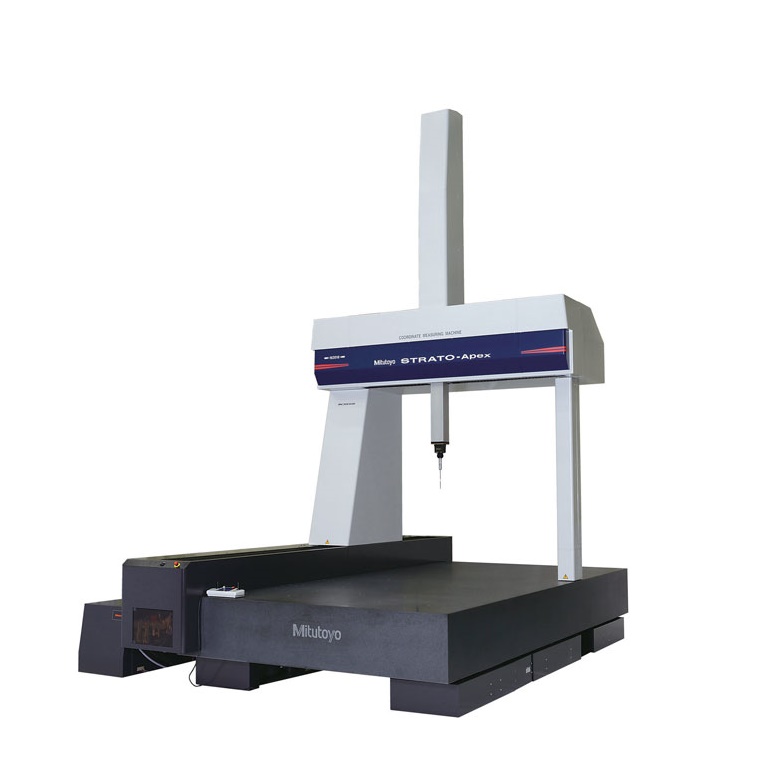

MITUTOYO STRATO-Apex 162012 CNC Coordinate Measuring Machine (1600mm 2000mm 1200mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: BRIDGE TYPE
X-axis: 62.99in 1600mm
Y-axis: 78.73in 2000mm
Z-axis: 47.24in 1200mm
Resolution: 0.0000019" (0.00005mm)
Guide Method: Air bearing on each axis
Speed
- Maximum Drive Speed 3D: 23.85”/s (606mm/s)
- Maximum Acceleration 3D: 0.13G (1,350mm/s2)
Work Table:
- Material-Granite
- Size: 72.83x129.13in 1850x3280mm
Tapped insert: M8x1.25mm
Work piece:
- Max.Load: 7,716lbs 3500kg
- Max.Height: 53.14in1350mm
Mass(incl. stand & controller): 24,582lbs 1115kg
Dimensions: 110.43 x 145.07 x 170.87" (2805 x 3685 x 2805mm)
