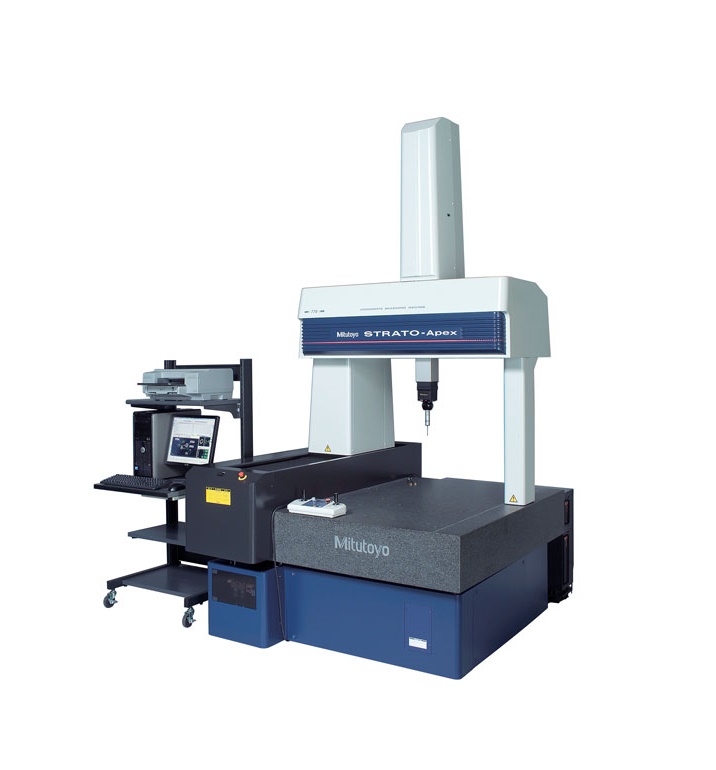

MITUTOYO STRATO-Apex 776 CNC Coordinate Measuring Machine (700mm 700mm 600mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Type: Moving Bridge Type High Accuracy
X-axis: 27.6" (700mm)
Y-axis: 27.6" (700mm)
Z-axis: 23.6" (600mm)
Resolution: 0.0000008" (0.00002mm)
Material: Granite
Work Table Size: 33.93" x 55.90" (862mm x 1420mm)
Tapped Insert: M8x1.25mm
Max Workpiece Height: 30.31" (770mm)
Max Workpiece Weight: 1102lbs (500kg)
Mass (including stand and controller): 4177lbs (1895kg)
Machine Dimensions WxDxH: 57.48 x 73.22 x 111.41"(1460 x 1860 x 1460mm)
