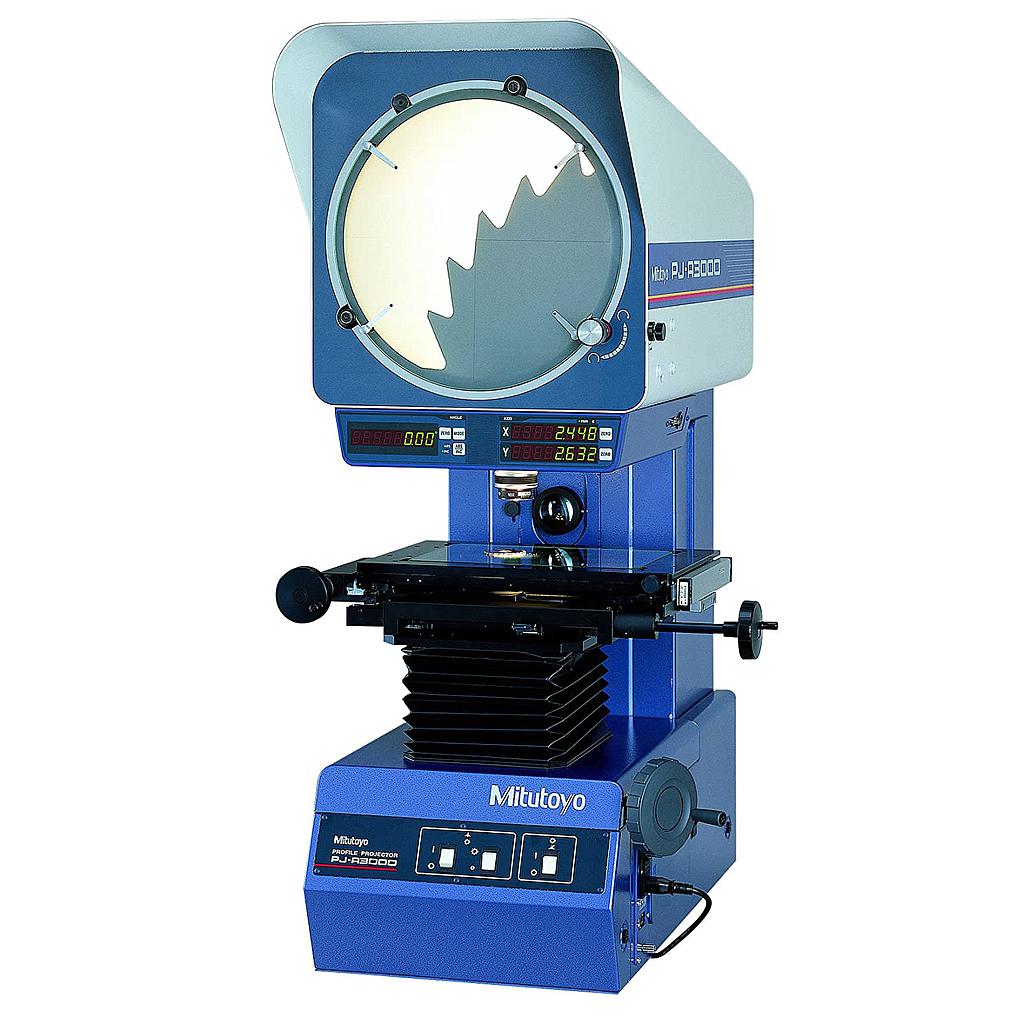

MITUTOYO PJ-A3010F-200 Profile Projector (±360°)

Projected image: Projected image

Protractor screen

Effective diameter: 12.4” / 315mm

Screen material: Fine ground glass

Reference line: Cross hair line

Angle display (LED) Resolution: 1° or 0.01° (switchable), Range: ±360°

Functions: Absolute/incremental mode switching, Zero Set

Projection lens : Standard Accessory 10X (172-202)

Magnification accuracy

Contour illumination: ±0.1% or less

Surface illumination: ±0.15% or less

Contour illumination

Light source: Halogen bulb (24V, 150W)

Optical system: Telecentric system

Functions 2-stage brightness switch, Heat-absorbing filter

Surface illumination

Light source: Halogen bulb (24V, 150W)

Optical system: Vertical illumination with a half-reflection mirror

XY range: XY range

Resolution: 0001” / 0.001mm

Table size: 14.96x9.84”

(380x250mm)

Effective table area: 10.47x6.69”

(266x170mm)

Max. workpiece height: 3.64” (92.5mm)

Power supply: 120V AC, 50/60Hz

Standard accessories: 10X projection lens set, masking shield, power cord, halogen bulb, fuse, grounding wire, allen wrench, vinyl cover
