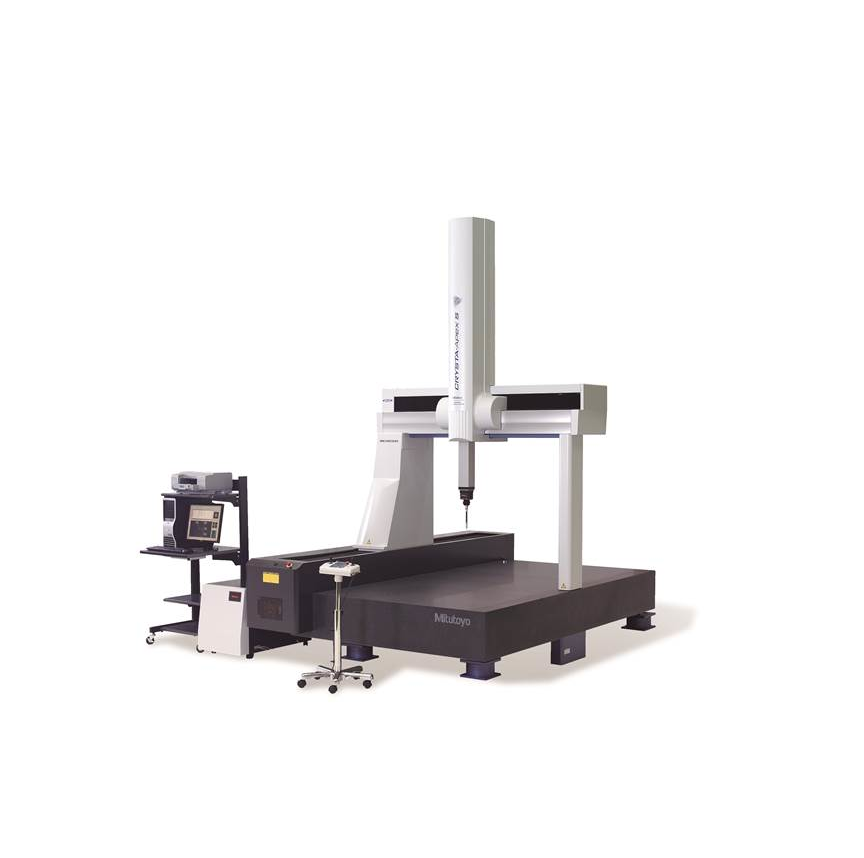

MITUTOYO CRYSTA-Apex S 122010 Coordinate Measuring Machine (1200mm, 2000mm, 1000mm)

Measuring range:

X-axis 1200mm

Y-axis 2000 mm

Z-axis 1000mm

Resolution: 0.0001 mm (0.1 μm)

Guide method: Air bearings on each axis

Drive speed

- CNC MODE: Drive speed 8 - 400mm/s; max. speed: 693 mm/s

- J/S MODE: 0 - 80mm/s (J/S Mode: High Speed); 0 - 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)

Max. measuring speed: 5 mm/s

Max. drive acceleration: Each axis: 1,000 mm/s², max. combined acceleration: 1,732 mm/s²

Workpiece

- Maximum height: 1200mm

- Maximum mass: 2500 kg

Mass (including the control device and installation platform): 6150 kg

Air supply

- Pressure: 0.4 MPa

- Consumption: 100 L/min under normal conditions (air source: 150 L/min)
