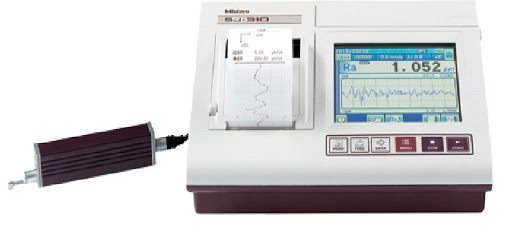

MITUTOYO SJ-310 Portable Surface Roughness Tester (0.75mN Type)

Stylus tip radius: 5 µm

Stylus: Diamond Tip

Skid radius: 40 mm

Profiles: Roughness Profile (R), R-Motif, DF-Profile and more

Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings

Digital filter: Gauss, 2CR75, PC75

Cut-off length:

λc : 0.08 mm; 0.25 mm;

0.8 mm; 2.5 mm; 8 mm

λs : 2.5 µm; 8 µm

Printer: Thermal Printer

Inch-Metric: Inch/Metric
