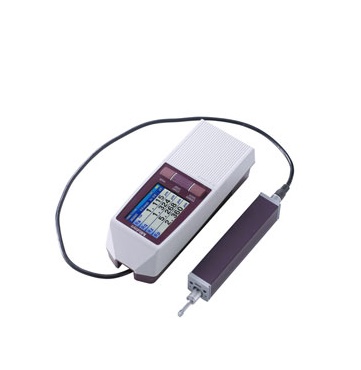

MITUTOYO SJ-210 Portable Surface Roughness Tester (0.75mN / 2µmR 60°)

Retractable drive unit type

Measuring range:

X axis: .69" (17.5mm)

Z axis (Detector):

Range: 14200 µin (-7900µin~+6300µin) / 360µm (-200µm ~ +160µm)

Range / Resolution: 14170µin /.8µin (360µm / 0.02µm), 4000µin / .2µin (100µm / 0.006µm),1000µin /.08µin (25µm / 0.002µm)

Measuring speed: Measuring: 0.01, 0.02, 0.03 in/s (0.25mm/s, 0.5mm/s, 0.75mm/s) Returning: 1mm/s

Measuring force / Stylus tip: 0.75mN / 2µmR 60°

Skid force: Less than 400mN

Applicable standards: JIS ’82 / JIS ’94 / JIS ’01 / ISO ’97 / ANSI / VDA

Evaluation parameters: Ra, Rc, Ry, Rz, Rq, Rt, Rmax, Rp, Rv, R3z, Rsk, Rku, RPc, Rsm, Rmax, Rz1max, S, HSC, RzJIS, Rppi, R∆a, R∆q, Rlr, Rmr, Rmr(c), R δ c, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rpm, tp, Htp, R, Rx, AR, Possible Customize

Power supply: Two-way power supply: battery (rechargeable Ni-MH battery) and AC adapter

Size (W×D×H):

Display unit: 2.05 x 2.6" x 6.3" (52.1×65.8×160mm)

Drive unit: 4.5 x .9 x 1.02" (115×23×26mm)

Mass: About 1.1lbs (500g) (Display unit + Drive unit + Standard detector)

Standard accessories

12BAA303 Connecting cable

178-602 Roughness specimen (Ra 3.00µm)

12BAK699 Carrying case

12BAK700 Calibration stage

12BAK820 Protective sheets for display

AC Adapter

Operation manual

Quick reference manual

Warranty
