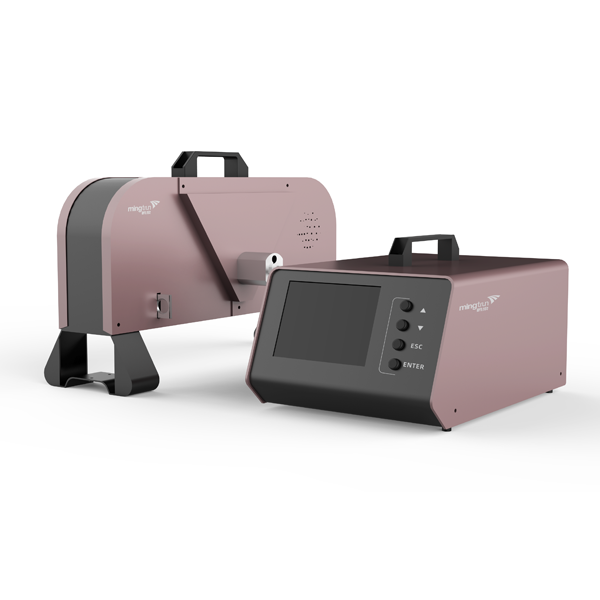

MINGTRUN MQY-201 Opacimeter (0.01%; 0~99.9%; ±2%)

Item: Resolution/ Measurement range/ Absolute accuracy

- Opacity (N): 0.01% / 0～99.90% / ±2.0%

- Optical absorption coefficient(K): 0.01 m-1 / (0～16.08) m-1 / 0.05 m-1

- Optional RPM function: 1r/min / (300～6000)r/min / ±50r/min

- Oil temperature: 1℃ / (0～200)℃ / ±5℃

- Gas temperature: 1℃ / (0～150)℃ / ±5℃

Warm-up time: less than 15 min

Power supply: AC 220V±22V, 50Hz±1Hz, 150W

Efficient length of optical path: 215mm

Net weight:

- Control unit: 5kg

- Measure unit: 6kg

Dimension(W×H×D)

- Control unit: 353×210×248mm

- Measure unit: 525×332×170mm
