MILWAUKEE MA860 Galvanic dissolved oxygen probe (0.0~50.0 °C)

Probe MA860: Galvanic Probe

Temperature Range: 0.0 to 50.0°C / 32.0 to 122.0°F

Temperature Sensor: Built-in Thermistor

Cathode: Silver

Anode: Zinc

Membranes: Oxygen permeable PTFE (MA861)

Connector Socket: DIN 7pins

Body: PP, ABS, IP67 rating

Cable Jacket Material: PP

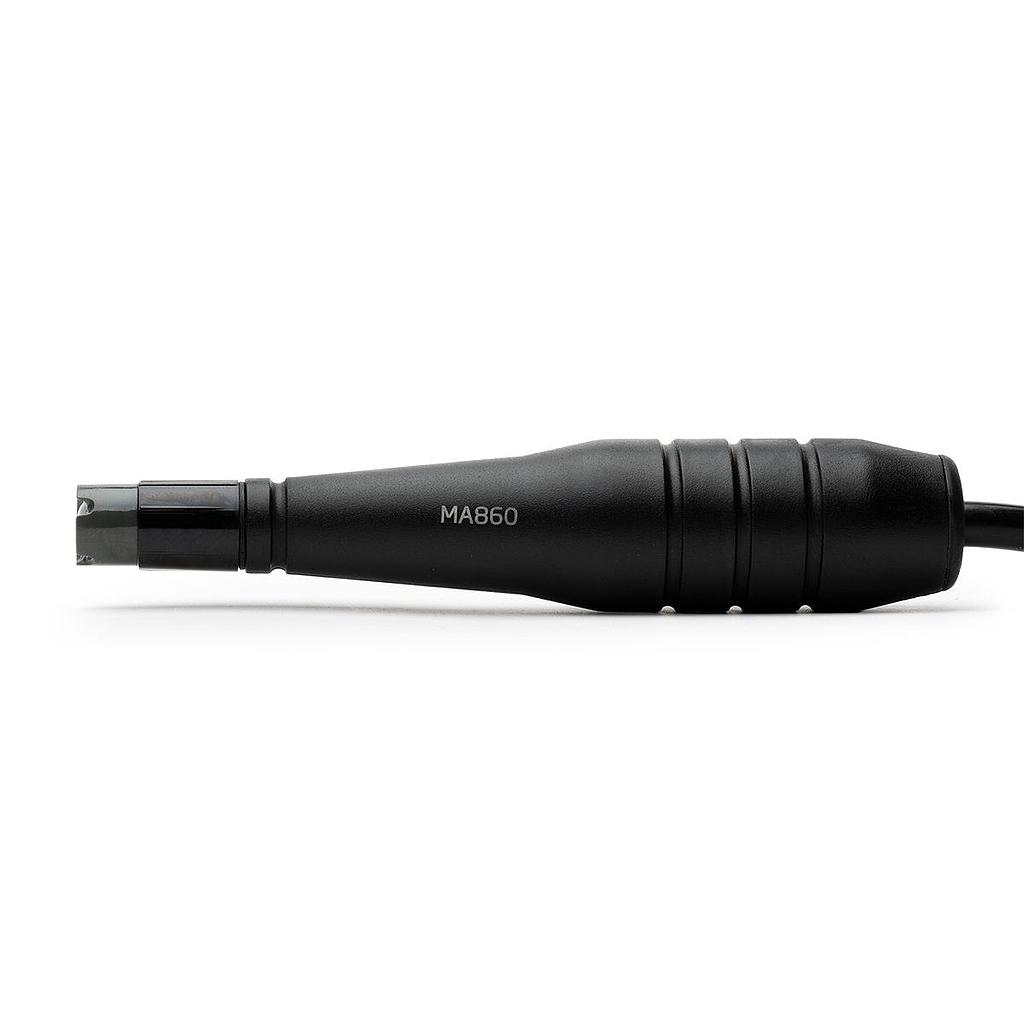

The Milwaukee MA860 is a Galvanic replacement probe for the MW605 MAX Dissolved Oxygen meter.

The refillable Galvanic probe has an oxygen-permeable polytetrafluroethylene (PTFE) membrane sensor for measuring dissolved oxygen (DO) levels in aqueous solutions and a built in temperature sensor.

The probe uses a silver cathode and a zinc anode. The body is made of PP, ABS.

Design Features

Reinforced plastic PP, ABS for durability.

Built in temperature sensor to achieve thermal equilibrium between the sensor and the sample for more accurate reading.

6.3" (160 mm) long with a tip that tapers from 1-1/2" to 3/4" in diameter.

10' (3.0 m) cable with a 7-pin DIN connector for attaching to the meter.

MA861 Membranes only.
