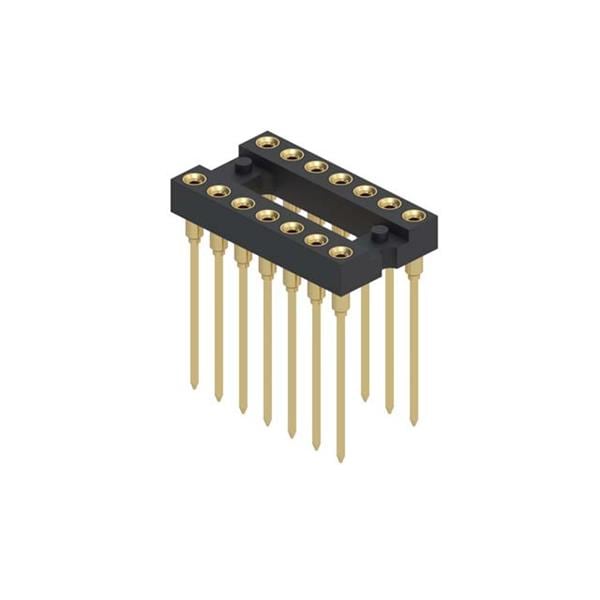

Mill-Max 123-13-314-41-001000 Open Frame 14P GLD PIN GLD CONT
ManufacturerMill-Max(View more products from this manufacturer)
Model123-13-314-41-001000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm
Features: 3 Level Wrap Post
Case Style: Open Frame
Lead Length: 12.95 mm
Row Spacing: 7.62 mm
Unit Weight: 1.588 g
Current Rating: 3 A
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 1 kV
Contact Plating: Gold
Contact Material: Beryillium Copper
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Wire Wrap
Flammability Rating: UL 94 V-0
Number of Positions: 14 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
