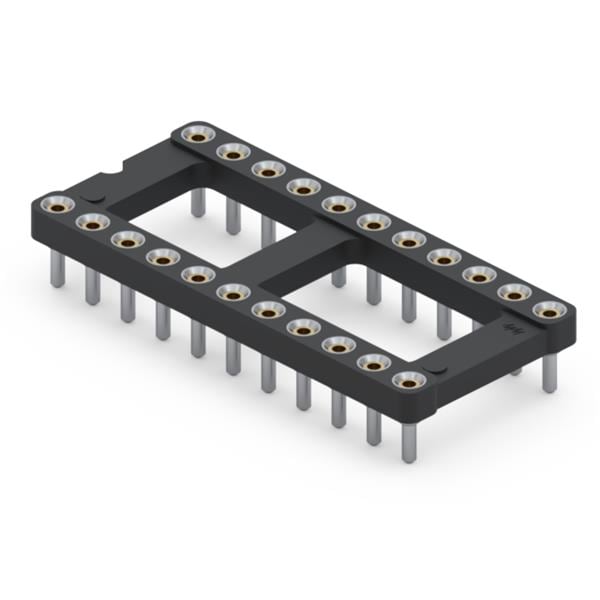

Mill-Max 115-93-424-41-003000 Open Frame 24P TIN PIN GLD CONT
ManufacturerMill-Max(View more products from this manufacturer)
Model115-93-424-41-003000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm
Features: DIP socket, ultra low profile
Case Style: DIP
Row Spacing: 10.16 mm
Current Rating: 3 A
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 1 kV
Contact Plating: Gold
Contact Material: Beryllium Copper
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Tail
Flammability Rating: UL 94 V-0
Number of Positions: 24 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
