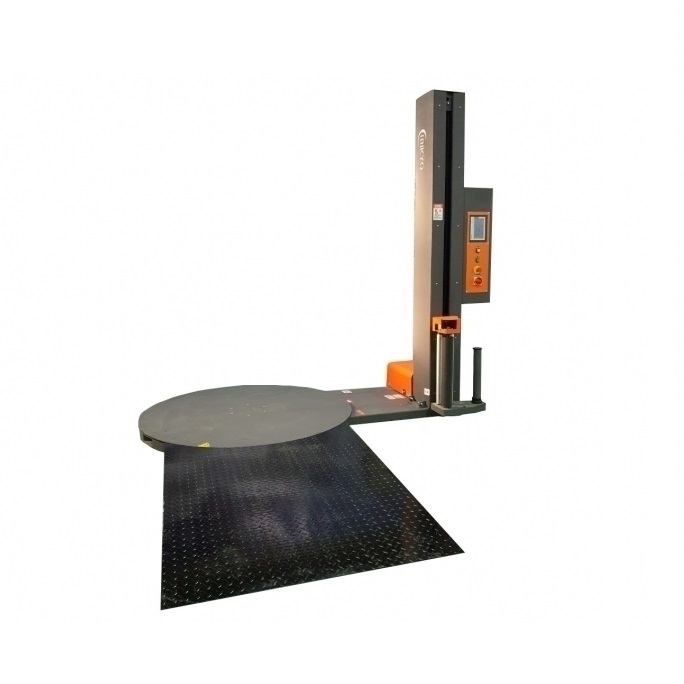

Mikyo MK-1620-ME Pallet Stretch Wrapping Machine (3-12 rpm)

Load capacity: 1500kg

Speed of turntable: 3-12 rpm

Rollable pallet size: L1200xW1200xH (500-2000)mm

Size of turntable: 1650 mm

The speed up and down of stretch: 1.5 - 5.5 m / min

Film speed: 20-40 pallets/hour (pallet 1x1.2x1.2m with 2 rolls)

Power supply: 1 Phase 220V / 50Hz

Power: 1.5 kW

Turntable height: 85 mm

Machine weight: 480 Kg

Machine size: 2800x1650x2480 (LxWxH)

Ambient temperature: 0 ~ 40 degrees C

Noise: 75dB

Humidity: <=70% (Relative Humidity)

Size of PE film roll:

Width: 500 mm

Outer diameter: Max. 250 mm

Diameter of core: 76 mm

Weight: 15kg max

Thickness: 17~25 (Micromet)
