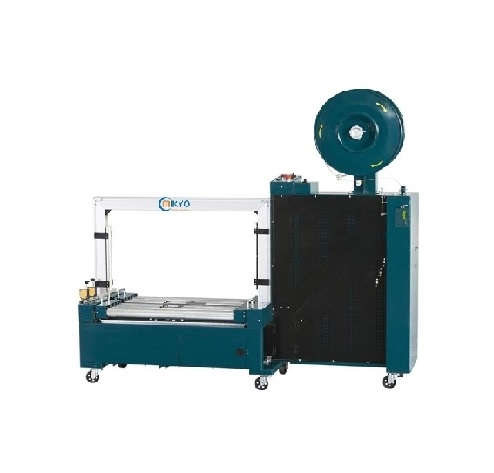

Mikyo MH-102B Automatic Strapping Machine (18path/min)

Power source: 380V 50/60HZ 3Phase 1.27KW,10A

Packing speed:≤18path/min

Strapping force: 0-90kg（adjustable)

Supporting valu: 100kgs

Hot-adhering position: bottom

Table height: 450mm (It’s possible to customize the height)

Arch

Standard size: width 800mm x height 600mm (inner size)

Material: aluminum alloy

(It's possible to customize the size)

Applicable PP strap

With (9,10,11,12,13,15)mm, thickness (0,6~1,0)mm (to be specified)

Stretching Resistance: Max 150kg

Applicable PP strap spool

W: 160mm

Inner dia: 200mm~210mm, out dia: 400mm~500mm

Packing type:

Parallel 1~2 packing strips

In type of photoelectric control, manul operation

Dimensions: L1900XW620XH1750mm

Packing measurements: L2000×W800×H1420mm(2.304CBM, dis-assembled arch)

Weight: N.W: 340kg G.W:380kg

Noise: ≤75dB（A）

Environment condition: Humidity ≤90%, temperature 0-40℃

Bottom adhesion: Surface≥90%, deviation of position≤2mm

Electrical Configuration

PLC Control: Siemens

PLC Contactor: Schneider

Button: Schneider

Relay: Schneider

Motor: MEIWA

Sensor Swith & Proximity Switch: P+F or Foteck
