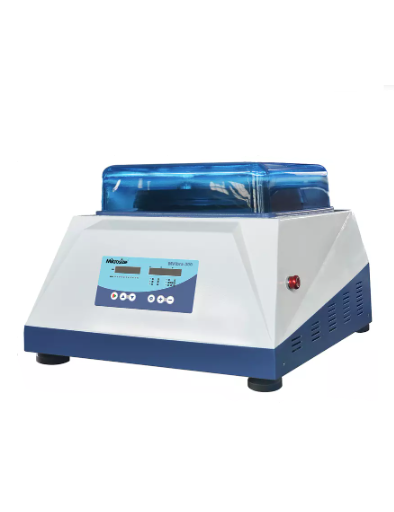

Mikrosize VP-300 Vibration Polishing Machine (300mm, 1.5kw)

Polishing Disc Diameter: 300mm

Polishing Cloth Diameter: 300mm

Vibration Power: 1.5kw

Vibration Voltage: Adjustable 50-90v

Vibration Frequency: Adjustable 25-400Hz

Voltage Using: 220V

Max Setting Time: Ex-factory setting 3 hours

Clamping Sample Diameter: ф22, ф30, ф45mm

Machine Dimensions: 450×565×400mm

Net Weight: 90kg

VP-300 Vibration Polishing Machine Packing List:

Machine Mainframe

Clamp DeviceФ45mm: 2 pcs

Ф300mm Polishing Cloth

Clamp DeviceФ22mm: 2 pcs

3/5mm Wrench

Level Block

Clamp DeviceФ30mm: 2 pcs

6mm Wrench

Instruction Manual/Product Certificate

VP-300 Vibration Polishing Machine Description:

●Vibration polishing machine design reduces dependence on staff skills and achieves higher polishing effect.

●Spring plate and magnetic induction motor producing vibration.

●Simple operation, wide applicability; almost can be applied to all kinds of materials; set polishing time according to sample state; large polished area; not produce any additional damage and deformation layer in the polishing process ; can effectively remove and avoid embossed, embedded and plastic rheological defects.

● can produce almost completely horizontal vibration, which maximizes the time for sample to contact polishing cloth.

●user can leave after setting program, sample will automatically begin to vibrate on the polishing disc. And a number of samples can be placed at one time, greatly improves work efficiency.

●Anti-dust cover can ensure the cleanliness of the polishing disc.

●The whole machine adopts ABS material, the appearance is novel and beautiful,

●Vibration frequency can be automatically adjusted with the working voltage

●VP-300 is not suitable for polishing specimen with very rough surface,which consumes too much time.
