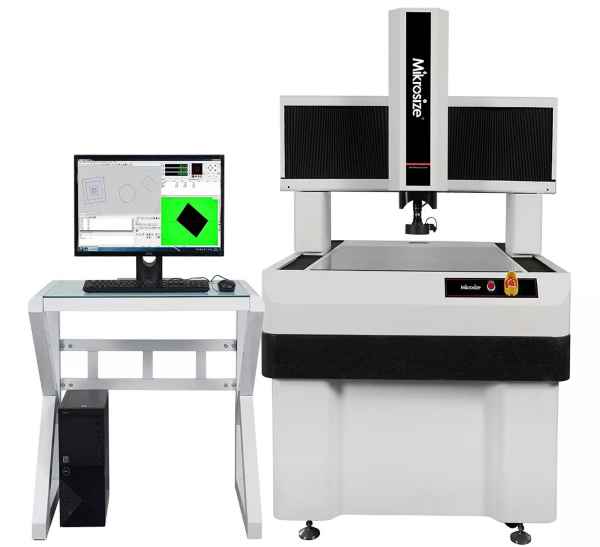

Mikrosize VMG-1012P Video Measuring system (3D,1000x1200x200mm)

Stage Travel(mm)X/Y/Z: 1000x1200x200

Machine Dimensions(mm): 2090x1562x1620

Accuracy(µm): E1(x/y)=(3.5+L/100) , L=length to be measure in mm

Load weight of worktable: 30kg

Net Weight(KG): 1200

Optical system

Image Sensor: 1/2" color CCD camera

Objective: Auto Coaxial Zoom Lens

Magnification: Optic:0.7x~4.5x, Video:20x~148x

Working Distance: 92mm(standard)

Object field of view: 11.1~1.7mm(standard)

Resolution: 0.5µm

Driving System: X,Y,Z-axis Screw Driving

Movement Control: CNC-servo Movement Control System

Speed: X.Y-axis: 300(mm/s) / Z-axis: 50(mm/s)

Illumination

Contour: Adjustable 256-grade LED Cold illumination

Surface :Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination

Measuring Software: Microsize

Working Environment

Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%

Vibration: <0.002g,15Hz

Power Source: AC 100~220V 50/60HZ 10A

VMG Automatic Gantry CNC Video Measuring System Standard Delivery:

Measuring Software

CCD Camera/Video Capture Card

Motorized Coaxial Zoom Lens

Mainframe/Dell PC System

Scale Transfer /Movement Control Card

8 –Division LED Illumination

Linear Scale/Calibration Block

100mm Length Block(3D)

Renishaw Probe (3D)
