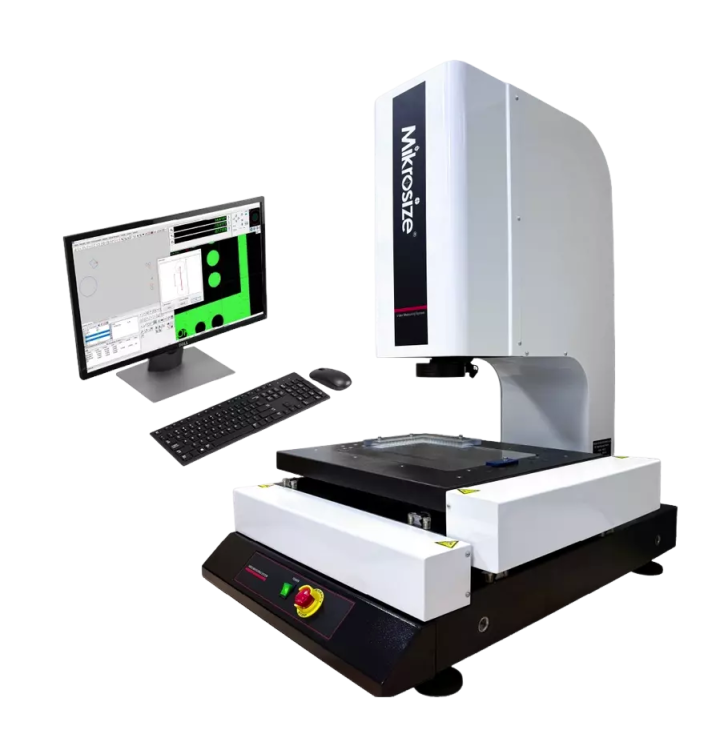

Mikrosize VME-3020 CNC Auto Video Measuring System (2.5D, 300x200mm, Manual Zoom Lens;)

X,Y-axis Travel: 300x200mm

Z-axis Travel: 200mm

Dimensions(mm): 750X520X980

Max.load Capacity: 25kg

Net Weight: 240kg

X/Y/Z 3-axis Linear Scale(2.5D): Resolution:0.5&Micro;m

Accuracy(um): E1(x/y)=2.5+L/100

Repeatability: ±2um

Movement System: X,Y,Z-axis:Screw Rod

Movement Control: CNC Auto Servo Movement Control

Video System:

1/2" color CCD Camera

Auto Coaxial Zoom Lens

Optical Magnification:0.7-4.5x; Video Magnification:20-148x

Working Distance(Standard): 92mm

Object View(Standard): 11.1~1.7mm

Speed(mm/s): X,Y-axis:200 Z-axis:50

3D Measuerment: 3D Module and UK Renishaw Touch Probe

Measuring Software: Mikromea-CNC 2.5D CNC Measuring Software

Working Environment: Temperature: 20℃&plusmn;2℃, Temperature Variation<2℃/hr,Humidity:30~80%

Power Source: AC 100~220V 50/60HZ 10A

Standard Delivery

Measuring Software: 1pc

Mainframe/Dell PC System: 1 set

Linear Scale/Calibration Block: 1pc

CCD Camera/Video Capture Card: 1pc

Scale Transfer /Movement Control Card: 1pc

100mm Length Block(3D): 1pc

Manual Coaxial Zoom Lens(VME): 1pc

Auto Coaxial Zoom Lens(VMK): 1pc

48 –Division LED Illumination: 1pc

Renishaw Probe MCP-K2(3D): 1pc

Optional Delivery

0.5x Auxilliary Objective Lens: MS-OB05X

 2x Auxilliary Objective Lens: MS-OB2X

Coaxial Optical Lens: MS-COX

Laser Displacement Sensor: MS-LASER
