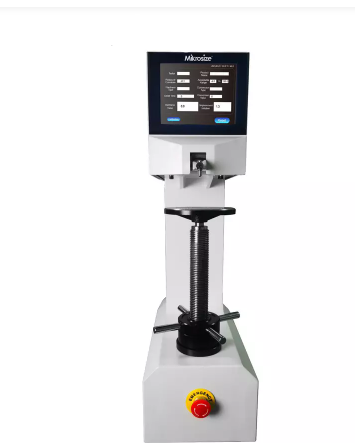

Mikrosize uRocky-45DN Dolphin Nose Superficial Rockwell Hardness Tester (Dolphin Nose Superficial, 3.0kgf/29.4N, 45kgf /441.3N, <0.5%)

Initial Test force (error < 0.5%): 3.0kgf(29.4N)

Total Test force (error < 0.5%): 15kgf (147.1N)/ 30kgf (294.2N)/ 45kgf (441.3N)

Hardness Scale: 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N,HR15T, HR30T, HR45T

Hardness Range: H15N: 70-94, HR30N: 42-86, HR45N: 20-77, HR15T: 67-93, HR30T: 29-82, HR45T: 10-72

Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230

Dwell time: 0-99s

Hardness resolution: 0.1 HR

Data Display: Touch LCD

Data Save: The measured values are saved on USB flash drive in Excel format

Test Height: 300mm

Test Throat: 250mm

Machine Dimension: 720 * 260 * 840 mm

Net Weight: 80kg

Power Supply: AC220 + 5%, 50 ~ 60 hz

Packing list

Diamond Rockwell Indenter:1

1.5875 mm Ball Indenter: 1

Regulating Screw: 4

150mm Test Anvil: 1

HR15N Hardness Block: 1

55mm Test Anvil: 1

HR30N Hardness Block: 1

40mm V-type Test Anvil: 1

HR30T Hardness Block: 1

Dust-proof Plastic Cover: 1

Power Line: 1

Instruction Manual: 1 Copy

USB Flash Disk: 1

Product Certificate: 1 Copy

Touch Pen: 1

2A Fuse: 2
