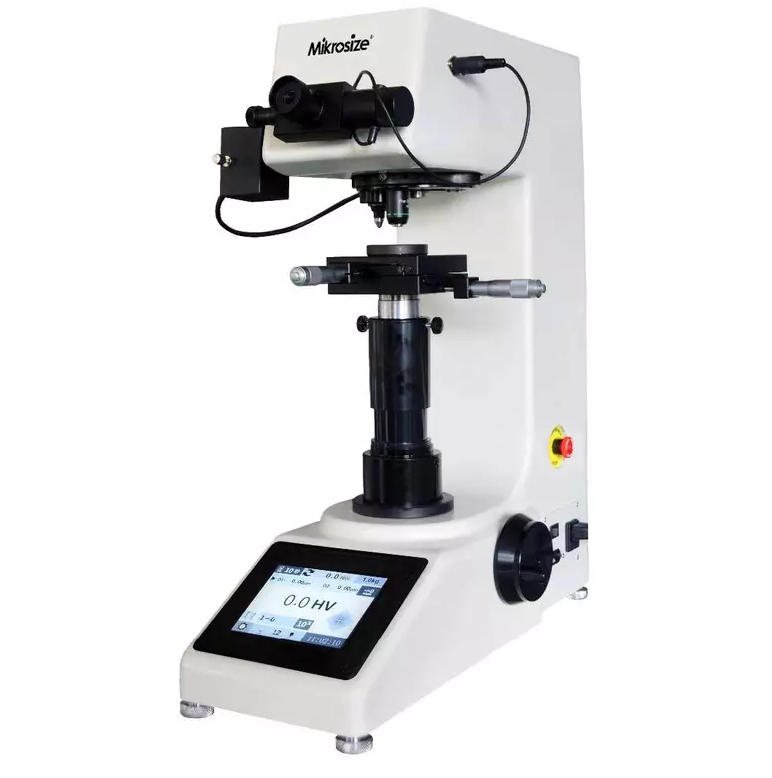

Mikrosize MVicky-50T Touch Screen Macro Vickers Hardness Tester (1HV~2967HV, 0.5kgf~50kgf)

Test Force(50Z) kgf: 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf

N: 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N

Test Mode: HV/HK

Test Range: 1HV~2967HV

Hardness Resolution: 0.1HV

Loading Method: Automatic (Loading/Dwell/Unloading)

Turret Rotating: Automatic

Data Output: Built-in Printer, RS232 Interface

Hardness Reading:

Color Touch Screen

Data can be saved

Conversion Scale (MHV-10Z/50Z): HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

Eyepiece: 10×Digital Measuring Eyepiece

Objective: 100×, 200×(50Z)

Effective Field of View: 10×: 800μm, 40×: 200μm

Min. Measuring Unit: 110×: 0.25μm, 40×: 0.06μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-Y Test Table: Size:100×100mm;Travel:25×25mm;Resolution: 0.01mm

Test Height: 170mm

Test Throat: 130mm

Power Supply: AC220V, 50Hz

Executive Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2

Dimension

Machine: 530×280×630mm,

Package: 620×450×760mm

Net Weight: 35kg, Gross Weight: 47kg

Standard Delivery:

Instrument Main Body: 1 set

Diamond Vickers Indenter: 1 pc

X-Y test Stage: 1 pc

Horizontal Regulating Screw: 4 pcs

Fuse1A: 2 pcs

Inner Hexagon Spanner 2.5mm: 1 pc

Hardness Block 700~800 HV1: 1 pc

Anti-dust Cover: 1 pc

10×Digital Measuring Eyepiece: 1 pc

10×，20x 40× Objective: each 1 pc

Power Cable :1 pc

Level: 1 pc

Halogen Lamp12V、15~20W: 1 pc

Screw Driver: 1 pc

Hardness Block 700~800 HV10: 1 pc

Usage Instruction Manual: 1 copy
