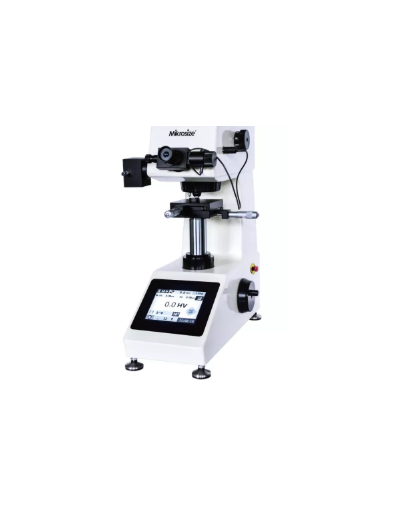

Mikrosize MVicky-1000T Touch Screen Micro Vickers Hardness Tester (9.807 N)

Test Force

0.098N(10gf)0.245N(25gf)0.49N(50gf)0.9807N(100gf)

1.961N(200gf)2.942N(300gf)4.903N(500gf)9.807N(1kgf)

Loading Method: Auto Loading , Dwelling, Unloading

Turret: Auto

Dwelling Time: 0~60s(every 5 seconds as one unit)

Eyepiece: 10x

Objective: 10x(observation) , 40x(measurement)

Total Magnification: 100x(observation) , 400x(measurement)

X-Y Test Anvil: Size: 100x100 mm,Travel: 25x25mm, Resolution: 0.01mm

Test Height: 90mm

Test Throat: 100mm

Net Weight: 31kg

Machine Dimension: 480x325x545mm (LxWxH)

Power Supply: AC110/220 V/50~60 Hz

Working Environment

In the range of (23±5) °C at room temperature.

Placed horizontally on a solid foundation.

No corrosive media around it in a vibration-free environment.

Indoor relative humidity is not more than 65%

Packing List：

Machine Mainframe: 1 set

Diamond Micro Vickers Indenter: 1 PC

X-Y Test Table: 1 PC

Thin Specimen Clamp: 1 PC

Hardness Block 400~500 HV0.2 :1 PC

Weights: 6 PCS

Horizontal Adjusting Screw: 4 PCS

Fuse 1A: 2 PCS

Power Cord: 1 PC

Anti-dust Cover: 1 PC

10X Digital Measuring Eyepiece: 1 PC

10X, 40X Objective: 1 PC ea.

Flat Clamp: 1 PC

Filament Clamp: 1 PC

Hardness Block 700~800 HV1: 1 PC

Weight Axis: 1 PC

Level: 1 PC

Halogen Lamp 12V, 20W: 1 PC ea.

Screwdriver: 2 PCS

Instruction Manual: 1 Copy
