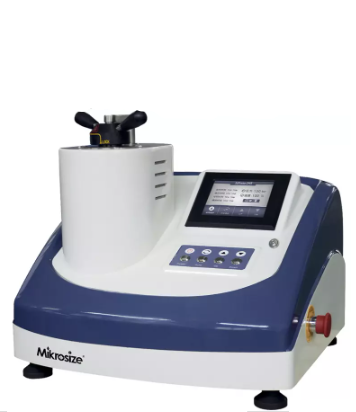

Mikrosize MPress-2HA Auto Metallographic Mounting Press (220V, 50Hz,10A)

Mould Diameter: Ф25mm, Ф30mm, Ф40mm (Choose one)

Cavity Height: 140mm, effective 85mm, mounting two samples at the same time

Heating Power

Ф25mm: 1KW

Ф30mm 1.8KW

Ф40mm 2.4KW

Pressure: 50~200bar (150bar ex-factary set, equivalent to 15Mpa, 150kgf/cm2)

Heating Temperature: 50~180℃ (120℃ ex-factary set)

Heating Time: 1~7min (4min30s ex-factary set)

Dwell Time: 30s~7min (1min ex-factary set)

Cooling Time: 1~30min (2min ex-factary set)

Total Time: 7min30s for two samples Ф30mm, 9min for two samples Ф40mm

Cooling Method: External water source cooling

Power Supply: 220V, 50Hz，10A

Machine Dimensions: 530×510×480mm

Net Weight: 60Kg

Standard Delivery

Machine Mainframe: 1 set

Middle Mould Block: 1 pc

Water Inlet Pipe: 1 pc

Water Outlet Pipe: Ф10mm: 1 pc

Water Inlet Filter: 1 pc

Hoop: 1 pc

Bakelite Powder: 500g: 1 bottle

Measuring Cup: 1 pc

Inner Hexagon Spanner: 5mm: 1 pc

Brush: 1 pc

Usage Instruction Manual: 1 copy
