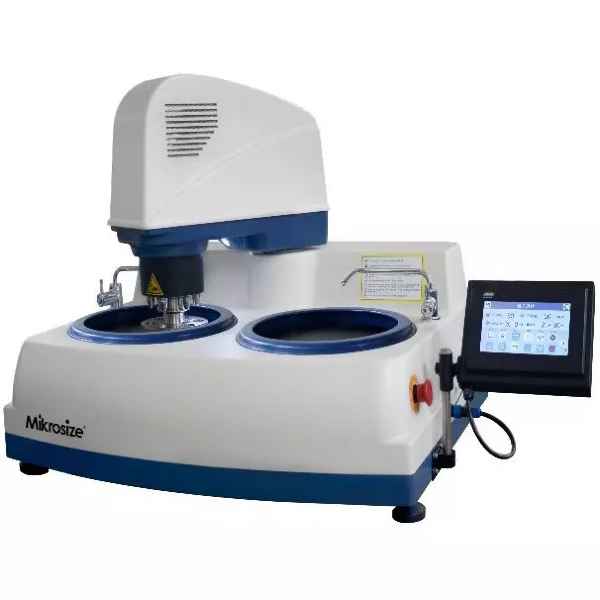

Mikrosize MPoli-2-300A Metallographic Auto Grinder Polisher (300m,220V, 50Hz, 12A)

Platen Diameter: 300mm

Abrasive Paper Diameter: 300mm

Platen Disc Type: Magnetic

Platen Disc Speed: Stepless 100~1000r/min

Platen Disc Direction: Clockwise or Counter-Clockwise

Platen Disc Motor: DC brushless motor, 220V, 1.2kW

Head Motor: 200W Stepper Motor

Head Lock: Automatic

Water Outlet: Automatic

Head Disc Speed: Stepless 20~120r/min

Timing set: 0~99min

Program Storage: 10 Saved Steps

Sample Holder Qty.: 6 pcs

Sample Holder: Standard:Φ25mm, Φ30mm, Φ40mm (Choose one) Customized different sizes and shapes

Pressure Method: Single Pressure or Central Pressure

Single Sample Force: 0~50N

Central Sample Force: 0~160N

Control Panel:7 inch Touch Screen

Power Supply: 220V, 50Hz, 12A

Machine Dimensions: 1200×800×760mm

Net Weight: 134kg

Standard Single Force Sample Holders

Φ25mm(Standard): 6pcs: Plastic Retaining Rings

Φ30mm(Standard): 6pcs: Plastic Retaining Rings

Φ40mm(Standard): 6pcs: Plastic Retaining Rings

Standard Central Force Sample Holders

Φ25mm(Standard): 6pcs: Plastic Retaining Rings

Φ30mm(Standard): 6pcs: Plastic Retaining Rings

Φ40mm(Standard): 6pcs: Plastic Retaining Rings

Standard Delivery

Machine Mainframe: 1 set

Grinding Head: 1 pc

Single Force Sample Holder: 1 pc

Sample Leveling Plate: 1 pc

Grinding and Polishing Disc: 1 pc

Magnetic Disc: 1 pc

Teflon Pad: 4 pcs

Abrasive Paper: 6 pcs

Polishing Cloth: 2 pcs

Water Inlet Pipe: 1 pc

Water Outlet Pipe: 1 pc

Water Inlet Filter: 1 pc

Air Pipe: 1 pc

Head Connection Cable: 2 pcs

Inner Hexagon Spanner: each 1 pc

Instruction Manual: 1 copy
