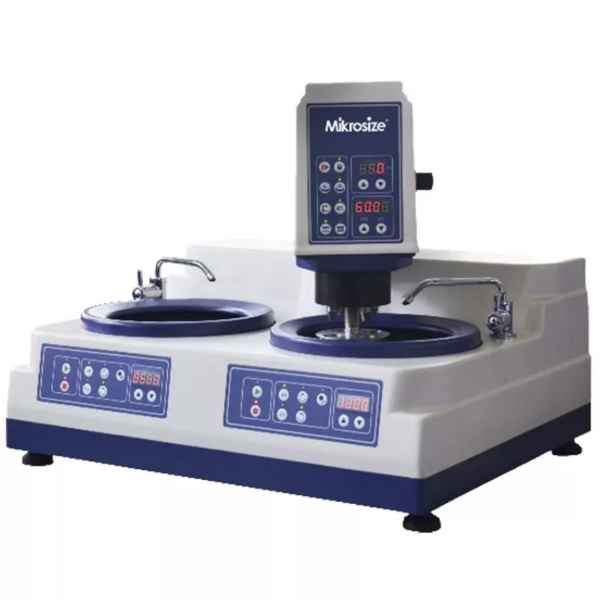

Mikrosize MPoli-2-230M Metallographic Auto Grinder Polisher (230mm,220V, 50Hz, 8A)

Disc Diameter: 230mm

Abrasive Paper Diameter: 230mm

Disc Speed: Stepless Speed 100~1000r/min, or Four Speeds 250, 500, 750, 1000r/min

Disc Rotational Direction: Clockwise or Counterclockwise

Disc Electromotor: DC Brushless Motor, 220V, 600W

Head Electromotor: Stepper Motor, 200W

Head Speed: Stepless Speed 20~120r/min

Timing Set: 0~99min

Sample Holding Qty.: 4 pcs

Sample Holder Specification: Φ25mm, Φ30mm, Φ40mm (Choose One) or Customized Specification

Pressure Method: Single Air Pressure

Pressure Force: 0~60N

Control and Display: Keypanel Operation , LED display, Grinding Head Automatic Locking and Washing Function

Power Supply: 220V, 50Hz, 8A

Machine Dimensions: 757×660×330mm

Net Weight: 57kg

Packing List

Machine Mainframe: 1 set

Grinding Head: 1 pc

Grinding Polishing Disc: 230mm: 1 pc

Magnetic Disc: 230mm: 1 pc

Teflon Pad: 230mm

MPoli-1-230A: 4 pcs MPoli-1-230A: 6 pcs

Abrasive Paper 230mm: 6 pcs

Polishing Cloth 230mm: 2 pcs

Water Inlet Pipe: 1 pc

Water Outlet Pipe Φ32mm: 1 pc

Water Inlet Filter: 1 pc

Air Pipe Φ6mm: 1 pc

Air Filter: 1 pc

Inner Hexagon Spanner 2mm, 3mm, 5mm: each 1 pc

Usage Instruction Manual: 1 copy
