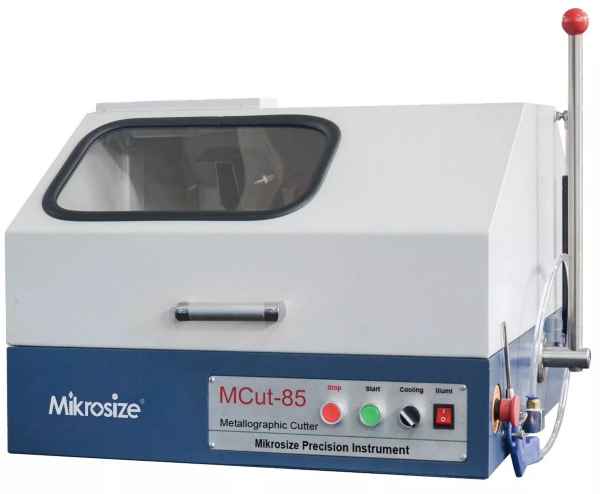

Mikrosize MCut-85 Manual Metallographic Cutter (Φ300×2×Φ32mm,3kW)

Cutting Method: Manual

Cut-off Wheel: Φ300×2×Φ32mm

Max. Cutting Capacity: 85×85mm

Spindle Speed: 2800r/min

Electromotor Power: 3kW

Cutting Stage: 204×240mm，T-slot 12mm

Clamping Device: Quick clamp，Jaw height 60mm

Power Supply: 380V, 50Hz，10A, Three-phase four-wire

Dimensions: 730×700×540mm（750×730×1200mm floor type）

Net Weight: 125kg（180kg floor type）

Water Tank Capacity: 60L

Pump Flow: 25L/min

Water Tank Dimensions: 565×360×600mm

Water Tank Weight: 27kg

Standard Delivery

Machine Body: 1 set

Water Tank: 1 set

Cut-off Wheel: Φ300×2×Φ32mm

Resin cut-off wheel: 2 pcs

Cutting Fluid: 3kg: 1 bottle

Spanner: 14×17mm，24×27mm: each 1 pc

Inner Hexagon Spanner: 3mm, 6mm: each 1 pc

Water Inlet Pipe: 1/2 Metal pipe: 2 pcs

Water Outlet Pipe: Φ48mm: 1 pc

Usage Instruction Manual: 1 copy
