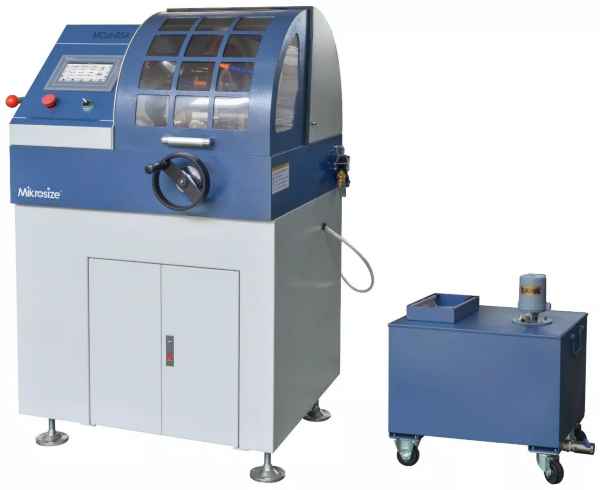

Mikrosize MCut-65A Automatic Metallographic Cutter (Φ300×2×Φ32mm,2kW)

Cutting Method: Manual/Automatic, Table feeding along Y axis

Cutting Mode: Continuous Cutting, Pulse Cutting

Feeding Speed: Manual / Automatic 1~240mm/min

Cut-off Wheel: Φ300×2×Φ32mm

Max. Cutting Capacity: Φ65mm

Y Axis Travel: 235mm

Z Axis Travel: 35mm

Spindle Speed: 500~3000r/min

Motor Power: 2kW

Cutting Table: 350×220mm，T-slot 12mm

Clamping Device: Quick Clamp，Jaw height 60mm

Display and Control: 7 inch Touch Screen

Power Supply: 380V, 50Hz，10A, Three-phase Five-wire

Dimensions: 800×760×1370mm

Net Weight: 280kg

Water Tank Capacity: 60L

Pump Flow: 25L/min

Water Tank Dimensions: 565×360×600mm

Water Tank Weight: 27kg

Packing List

Machine Body: 1 set

Water Tank: 1 set

Cutting Disc: Φ300×2×Φ32mm,Resin Cutting Disc: 2 pcs

Cutting Fluid: 3kg: 1 bottle

Spanner: 36mm，14×17mm，24×27mm: each 1 pc

Water Inlet Pipe: Φ20mm: 1 pc

Water Outlet Pipe: Φ48mm: 1 pc

Usage Instruction Manual: 1 copy
