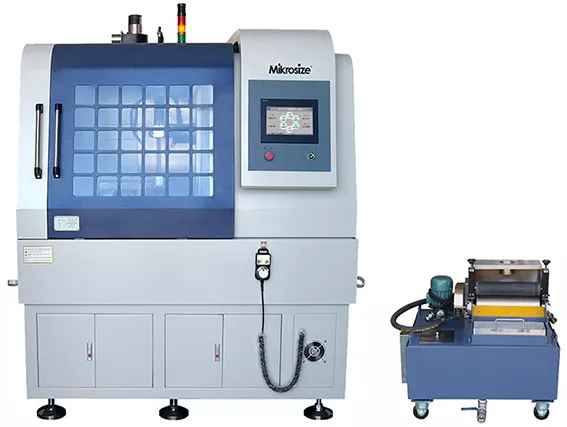

Mikrosize MCut-100A Auto Metallographic Abrasive Cutter (Ø350xØ32x2.5mm, 4kW)

Cutting Capacity (mm): 100x100

Function: Automatic Gas Exhaust System, Alarm System, Dual LED Lighting, Infrared Laser Positioning

Cutting Method: Manual / Automatic X/Y/Z- axis Linkage

Control System: 10 inch Touch Screen /Operating Handle-wheel

Cut-off Wheel Dimension (mm): Ø350xØ32x2.5

Cutting Feeding Speed: 1~200mm/min

X*Y Cutting Table Dimension (mm): 410x350

Y-axis Travel (mm): 250

Z-axis Travel (mm): 160

X-axis Travel (mm): 140

Clamp Opening (mm): 100

Spindle Motor

Power: 380V,50HZ,4kw

Speed: 500-2800r/min

Feeding Motor: Stepping Motor

Machine Dimensions (mm) (L×W×H): 1200*1100*1800

Net Weight (kg): 1700

Machine Power Supply: 3 Phases,5 Lines 380V 50HZ

Packing List

Machine Mainframe: 1 set

Water Tank: 80/120L: 1 set

Clamping Device: 100/120/200/300mm: 1 set

Cut-off Wheel: 46#, 41#: 2 pieces

Water Pipe: Ø350/380/400×2.5/2.8/3×Ø32 mm: 2 pieces

Usage Instruction: Ø 3/4 inch, Ø 2 inch: Inlet 1 piece,Outlet 1 piece

Manual: 1 Copy

Datasheet
